An 8-stage analog wavefolder that transforms simple waveforms into complex, evolving sounds using precision threshold and target voltage controls. Features intuitive fader interface, 13 internal modulation sources, macro envelope system, and stereo processing. Offers subtle to extreme harmonic manipulation with CV control over all parameters. Includes unique vector core technology with feedback options and real-time animation capabilities.

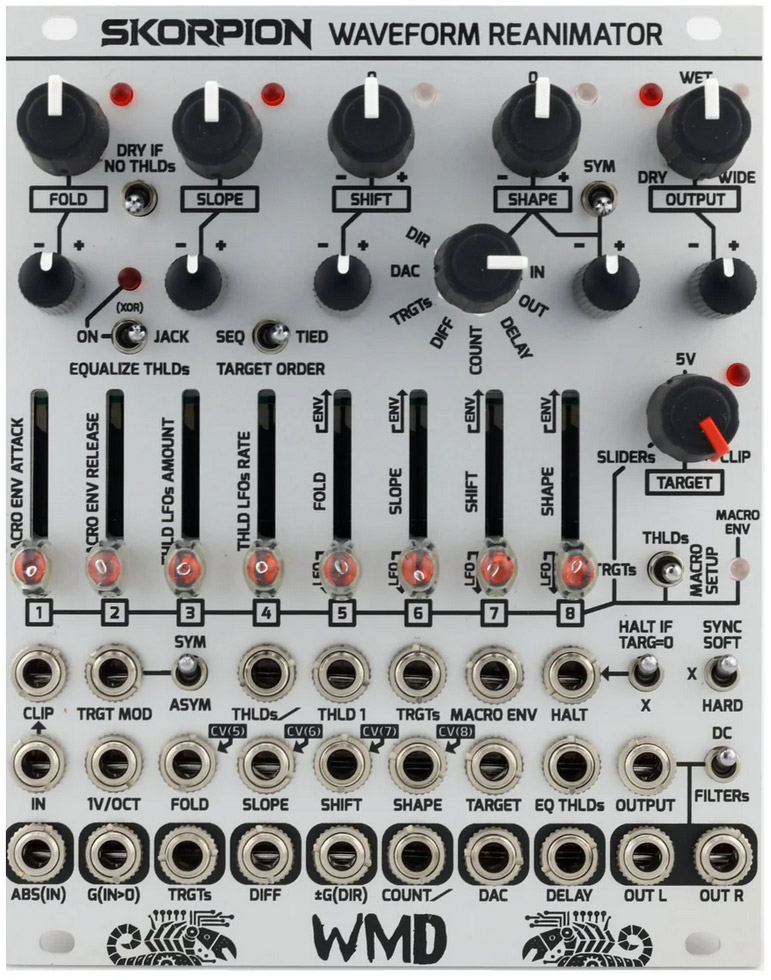

the controls
the shape and slope controls allow for smoother or harsher added harmonics, and the 1v/oct cv input is required for tracking timbre across notes.
fold controls the input gain of the signal, causing it to hit each of the eight thresholds causing a reversal in the output at each point. the signal can be driven towards one of three targets: 5v, the sliders, or the signal at the clip jack (normaled from in).
slope controls the baseline rate of the output, the higher the slope, the higher the harmonics. the overall slope rate is modified by 1v/oct and shape.
shift is the classical vertical shift that makes the wavefolder sound like a chorus with subtle modulation.
shape is a feedback control affecting the slope rate of the wavefolder. eight different sources are available for feedback. the sym switch decides whether the modulation is applied symmetrically when above or below 0v.
output controls whats at the output jacks, the dry signal, the wet signal, or a mid side stereo processed wide signal. wide is generated using a second vector core with a variable short delay. if all thresholds are inactive, a gate is normaled here. the intention being that if the input signal is too low to cause any folding, the
output circuit is pulled dry so that you never get silence from the skorpion.
the equalize tholds switch disables the sliders and forces an equally spaced threshold more akin to classic wavefolders. modulation is disabled in this mode. also controllable with a jack.
target order determines which slider is selected when the threshold is activated. basically, it allows for a different order on the way up as way down producing pleasingly different timbres when using the sliders for target.
sync has three modes, off in the center. hard which resets the vector core to 0v at every zero crossing of the input waveform. and soft which vectors core toward 0v at the current rate.
halt if targ=0 makes the vector core draw a horizontal line if the target slider for that threshold is at 0 (fully down).
animation - sliders, spring action switch, and macro envelope:
there are 13 total internal modulation sources. a primary macro envelope, eight (8) threshold lfos, and four (4) cv modulators that normal to the fold, slope, shift, and shape attenuverters. the cv modulators can be lfos or envelopes.
the switch rests in the center, making the sliders control the thresholds. when held to the left, the sliders set the targets. when held to the right, the sliders control the macro setup detailed below.
the macro envelope is an attack/hold/release style envelope. a gate here will start the envelope, lighting the led blue, while the envelopes level will glow red. the times for attack and release are controlled in the macro setup mode by the first two sliders.
the macro envelope modulates the amplitude of all lfos. if the cv modulators are set as envelopes, then the gate will start the envelopes, but they otherwise operate independently.
macro setup:
parameters are modified in macro setup by holding the switch to the right and moving respective sliders.
envelope times are shortest at the bottom of the slider and longest at the top.
lfo rates are slowest at the bottom of the slider and fastest at the top.
fold, slope, shift, and shape modulation can be either an lfo or an envelope. to change modes:
env: hit the bottom then the top within 0.5 seconds.
lfo: hit the top then the bottom within 0.5 seconds.
lfos can be disabled by moving the slider to the bottom. envelopes can not be disabled.
input jacks not yet mentioned:
clip this signal goes to the target control, and is the destination voltage. use another waveform here to overlay/interleave something different than the input waveform.
trgt mod always modulates the target regardless of the pot setting. the sym switch controls whether the waveform is applied symmetrically or asymmetrically.
thlds/ applies weighted cv to all thresholds. meaning the cv is 100% for thld8, 50% for thld7, 25% for thld6, etc.
thld 1 applies cv just to threshold 1.
trgts applies cv to all targets equally.
halt stops the vector core from changing voltage. it has a normal from the halt if targ=0 switch.
output jacks not yet mentioned:
abs(in) is a full wave rectifier, outputting the positive only version of the in signal.
g(in>0) outputs a gate if the input signal is positive.
trgts outputs the chosen target from the sliders.
diff outputs the vector core's difference between target and current voltage.
+-g(dir) outputs a +5v signal if the vector core is going positive, and a -5v signal if the core is going negative.
count/ outputs a staircase waveform of the number of active thresholds.
dac outputs a weighted staircase (r2r network) of the number of active thresholds.
delay is a raw output of the delayed vector core
out l and out r are stereo main outputs.
features:
analog vector core wavefolder
8 stage equivalent
16 reversal points (8 positive and 8 negative)
macro animation over fold, slope, shape, shift, and all eight thresholds.
single macro gate input to control animation
12 internal lfos, 5 internal envelopes
proprietary vector based delay core
wet/dry/wide control
mono to stereo with mid/side matrix, delay, & filtering
low frequencies stay mid. wide forces high frequencies to sides of stereo field
1v/oct tracking
easy to learn single sub-layer for advanced controls
hard/soft sync
shape control with eight feedback sources
tons of utility outputs and cv inputs for endless experimentation
specifications:
width: 20hp
depth: 38mm (with power cable)
power: +200ma, -160ma
lfo rate: 0.0016hz to 6hz
env time: 0.05s to 600s
