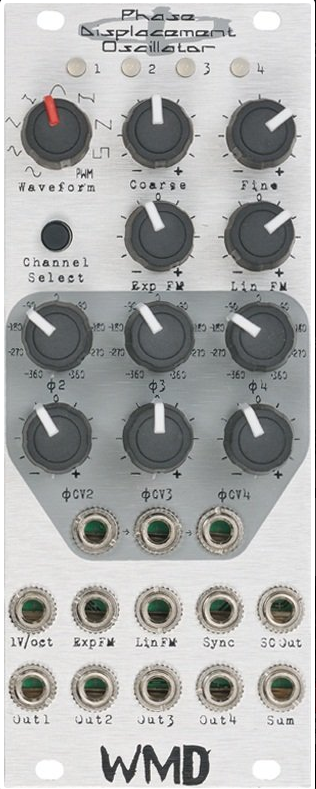

wmd phase displacement oscillator mark i price : $399.00

features:
analog sawcore vco
temperature compensated
linear (ac/dc) and expo (dc) fm
bipolar attenuators for fm
calibrated 1v/oct input
hard sync input (lfo reset)
~.0012hz (14min) to >=10khz
digital waveshaper
four simultanious outputs
phase modulation for outputs 2,3,4
bipolar cv inputs for phase mod
any waveform on any output
14 bit input, 12 bit output
100khz sample rate
channel indicator leds
sum output of all channels
expandable

specifications:
10hp
40 mm deep
115 ma +12v, 40 ma -12v
