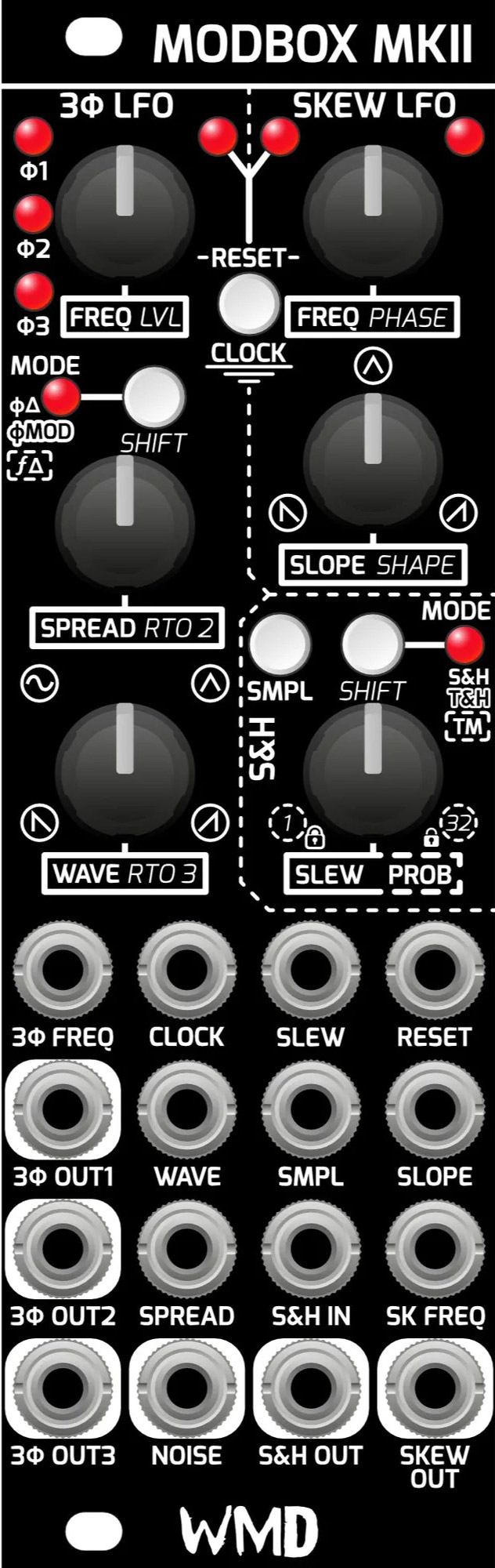

wmd modbox mkii price : $279.00

modbox mkii is a deeply modulatable dual-lfo and multifunction tool. the three phase oscillator generates three interrelated outputs across phase, modulation, and frequency-spread modes. the skew oscillator delivers a continuously morphing ramp/triangle/saw with curve warping and a beat-locked rhythmic lfo when clock synced. add a three-mode sample & hold with a 32-step probabilistic turing-style sequencer, an analog noise source, and full v/oct calibration, and you've got a complete modulation lab in a single eurorack module. patched in seconds, explored for years.

features:
saves settings after 1 minute of shift/mode inactivity
three output phase/frequency relational lfo
continuous wave morphing
skew lfo with curvature control
firmware can be updated in the field
clock sync and musical reset behavior
digital sample & hold
mini turing machine mode
independent ratios for 3 out2-3

specifications:
width: 8hp
depth: 38mm (with cables)
osc outputs: -5v to +5v, 1Ω impedance, 48khz, 12 bit
gate/reset/smpl: 100k impedance, 2v schmitt trigger

cv inputs decoupled from potentiometers
cv inputs: 100Ω impedance, -5v to +5v
s&h output: -5.1v to +5.1v, 1kΩ, 12 bit, 48khz
s&h input: -5.05v to +5.05v, 102Ω, 12 bit, 40khz
clock ratios: 15 symmetric integer ratios: /8 to x8 with x1 at center
