wmd chnl srfr price : $299.00

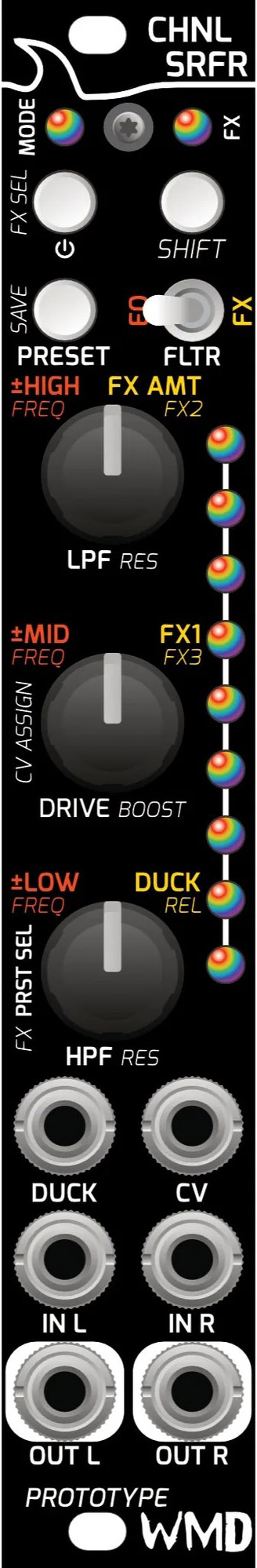

channel surfer (chnl srfr) is a 4hp eurorack channel strip module (eq, filter, ducking, dj effects) for use with individual voices, submixes, or full program material. it can be used in mono or stereo and can be connected to the performance mixer mkii insert header with a ribbon cable for seamless integration, or to the front jacks for independent use.

features:
stereo multi effects processing
3 band parametric eq
dj style hp/lp filters with individual resonance
dub echo, chorus, flanger, reverb, and more
ducker input for sidechaining, with amount and release control
24bit/96khz signal path

specifications:
width: 4hp
depth: 38mm (with cables)
power: +74ma, -12ma
audio inputs: 41k&ohml impedance, 22vpp range
audio outputs: 470Ω, 21vpp range
cv inputs: 100kΩ impedance, +-5v
processing: 24 bit / 96khz
