wmd 4tten price : $119.00

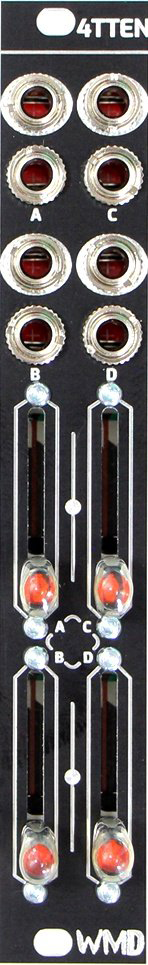

4tten (pronounced either atten or four-ten) is a four channel attenuator and offset generator.

use 4tten to attenuate any cv or audio signal by running through the ins and outs.

a +5v voltage source is normalled to each input, making it a standalone offset when there is no cable patched into an input.

each channel is completely independent.

ever-so-useful in live performance, we designed this module with 4 sliders for easy maneuverability, visual feedback, and enjoyable to play interface. make your eurorack modular synthesizer system more playable with 4tten!

*** 4tten's pcb is 113mm (4.45") tall and may be a tight fit in some cases (tta z-rails especially)***

features:
4 independent attenuators for control voltage and audio signals
performance friendly sliders
can be used as 0 to +5v offset
comfortable fader caps from the performance mixer

specifications:
size: 4hp
depth: 30mm(with cables)
power: +5ma , -5ma
virtually no drop on 1v/oct signals.
vertical pcb length: 113mm (4.45")
impedance = (source + 100ohm ) / 100kohm
unbuffered

dowmload the users manual here.
