synthrotek
obey

price : $124.99

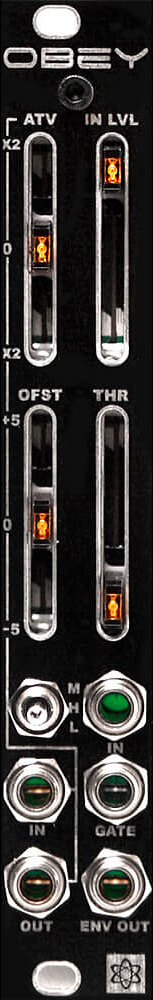

Obey

obey is a dual-function module: one half envelope follower and one half attenuverter / offset generator.

envelope follower:
the obey takes an audio or cv signal and uses it to trigger an envelope or gate for use in a eurorack system. it is designed to work with a wide variety of input levels: plug a eurorack module, passive microphone, piezo, guitar, drum machine, game boy into your eurorack system.

attenuverter / offset generator:
attenuvert your voltage sources up to two times in the positive or negative! the offset generator provides up to 5 volts in the positive or negative.

specifications:
module width: 4hp
module depth: 48mm
current draw: +12v: 25ma, -12v: 18ma

download the users manual here.
