back to main roland page


roland
system-500 531 mix

price : $399.99

System-500 531 Mix

inspired by vintage roland modular synths of the 1970s, these new additions to the system-500 family not only expand on the system-100m-based modules, but also explore fresh territory. designed in eurorack format, the system-500 delivers the classic character and functionality of vintage roland modular synths, with all the advantages of a modern instrument. the system-500 is made to exacting standards in a collaborative design and production process between malekko in portland, usa and roland in hamamatsu, japan.

classic system. new format.
the system-500 consists of eurorack format modules that you can mix and match in any combination to create the ultimate roland modular synthesizer. each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. the system-500 is a compact, powerful system that opens up vast possibilities for sound design and musical exploration.

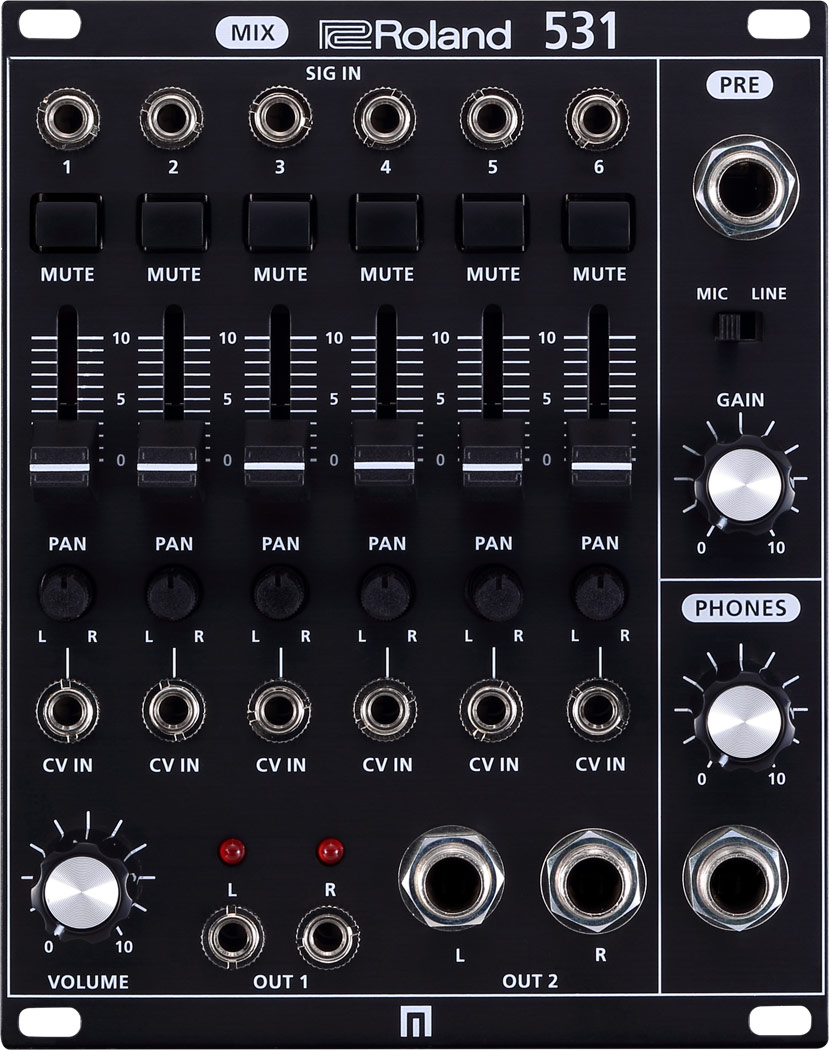

system-500 531 mix
inspired by the system-100m's 131 output module, the sys-531 brings an updated approach with convenient and modern features. with six high-quality inputs, each with level slider, pan knob, and performance-friendly mute button, the sys-531 is your central hub for mixing mono or stereo (pre only) signals. it has high-fidelity sound with low noise, ensuring that your modular rig sounds its best. the six pan knobs are cv controlled so you can create space and dimension, and achieve interesting stereo effects. there's even a boutique-quality stereo preamp, so you can bring in mic or line level signals -and abusing this preamp's gain knob gives you pleasing overdriven tones. the headphone section has an easy-to-reach, dedicated volume knob as does the multi-format output section that lets you use both ¼" and ⅛" cables. there's even an led level indicator for visual feedback.

specifications:
controllers
mute switch (1-6)
signal in slider (1-6)
pan knob (1-6)
volume knob
mic line switch
gain knob
phones knob

indicator
overload l indicator
overload r indicator

connectors
signal in jack (1-6): miniature phone type
cv in jack (1-6): miniature phone type
out 1 jack (l,r): miniature phone type
out 2 jack (l,r): ¼" phone type
pre in jack: stereo ¼" phone type
phones jack: stereo ¼" phone type

power supply
eurorack power

current draw
195 ma (+12 v)
165 ma (-12 v)

accessories
owner's manual
leaflet "using the unit safely"
eurorack installation screws (4 pcs)
eurorack power cable

size and weight
width: 101.3 mm, 4 inches, 20 hp
depth: 57.2 mm, 2 ¼" inches
height: 128.5 mm, 5-1/16 inches
weight: 274 g, 10 oz
