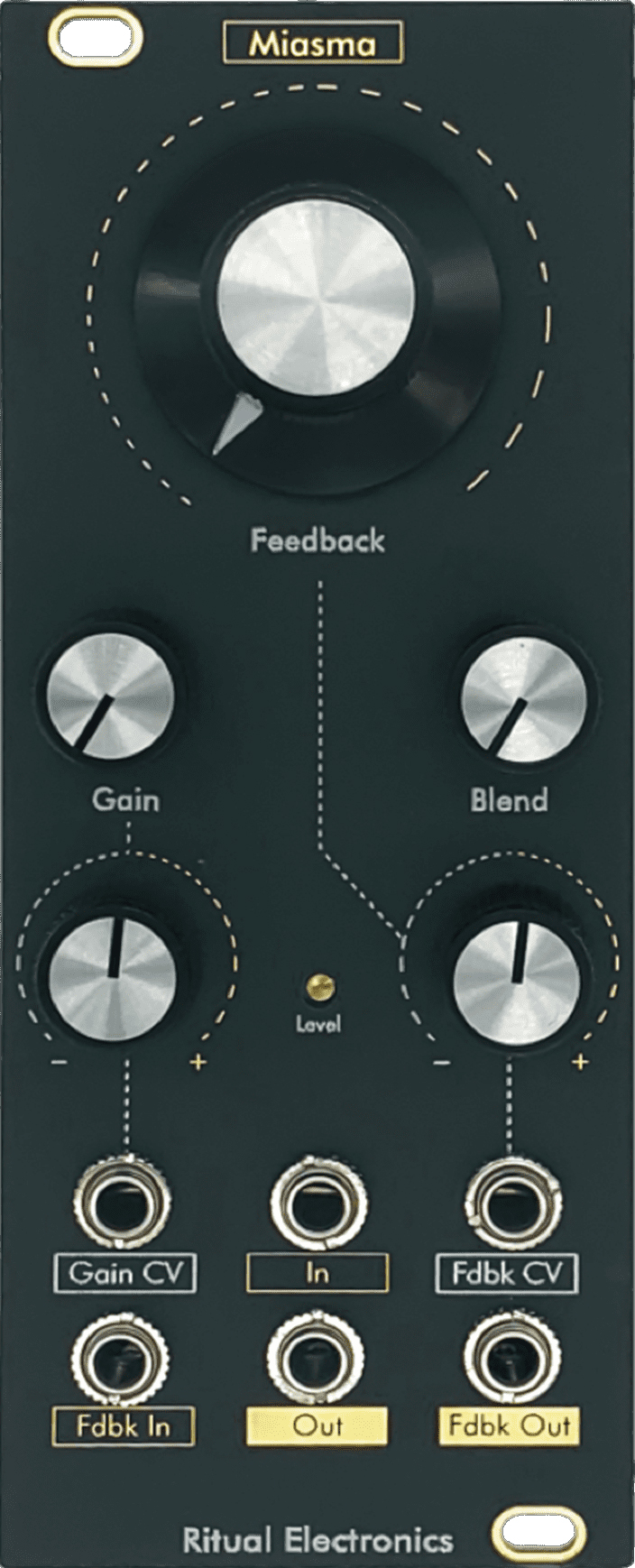

miasma is a voltage controlled distortion with a feedback loop you can push to self oscillation for insane results, and interchangeable rectification diodes, giving you an unlimited amount of sound possibilities within one module.
distorsion, feedback, thickener & more!
miasma feedback path feeds the distorted signal back in the input with no phase inversion, causing the module to self oscillate, even with no input. the feedback path can be opened to send it through different effects making miasma perfect for complex feedback
patches.
a blend knob allows miasma to be used in a precise way, for more complex sound design.
the module's clipping diodes are mounted on a header making it easy to swap them and craft the sound you want. the module ships with six different diodes, from germanium to leds and you can experiment adding your own. the output level may vary depending on
which diodes you use, this can be adjusted with the level trimmer on the front panel.
features:
controls
gain control up to +20db
feedback vca
blend control between dry and wet signal
attenuverters on gain and feedback cv
level trimmer to adjust the output volume
technical characteristics
ota based vcas for gain and feedback control
feedback output jack is normalized to the feedback input jack
one rectification diode per waveform polarity, making it possible for symmetrical or asymmetrical distortion
diodes can be swapped in and out without the need of tools
