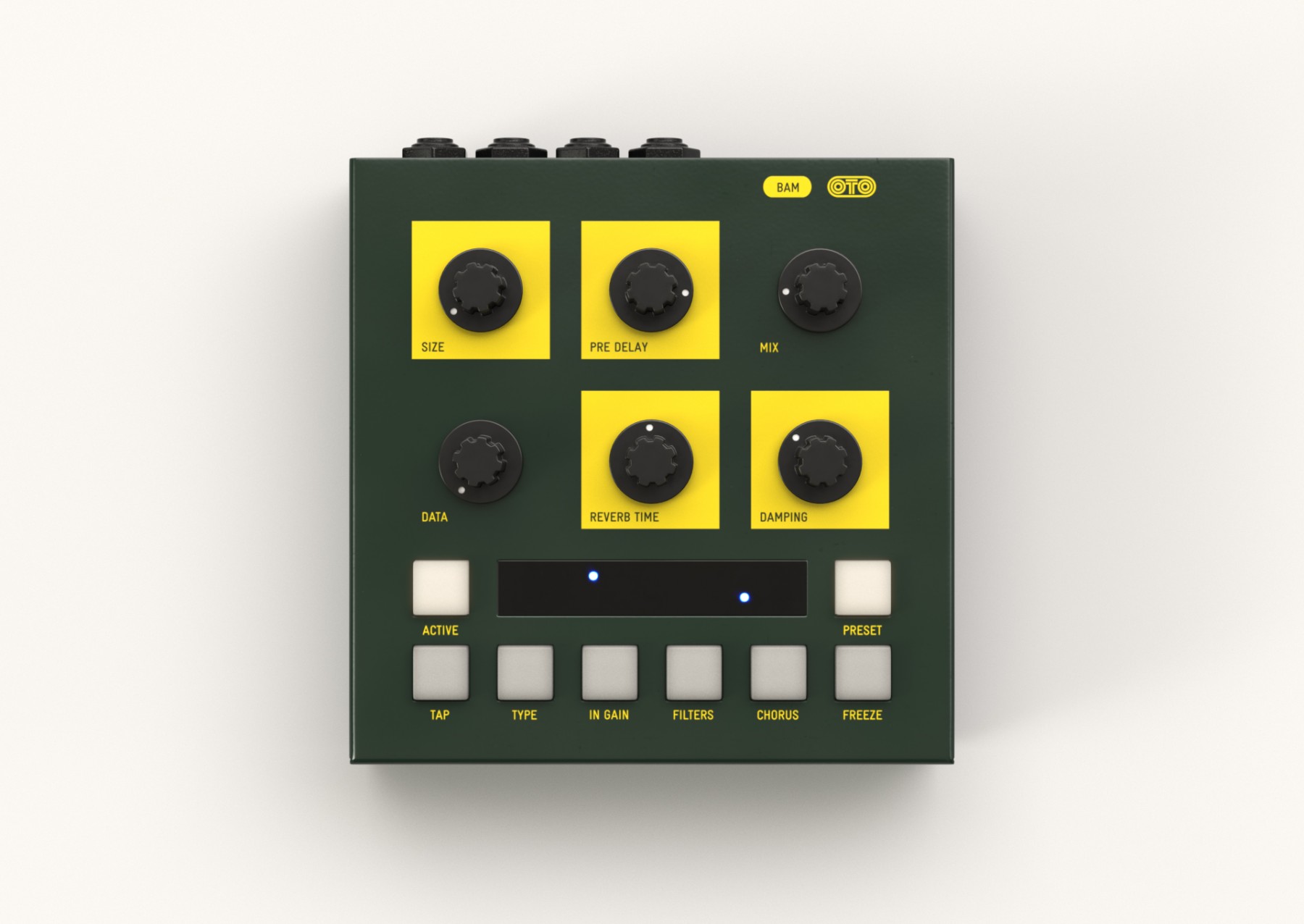

am is a stereo reverb processor inspired by the late 70s / early 80s digital reverberator units. these units are sought after by sound engineers, producers and musicians for their grainy, warm and musical
reverberations.
here at oto, we are passionated by the technology of the digital reverberators, especially the old models !
we have carefully listened to all digital reverberators built from 1976 to 1986, studied their architecture and read all the available papers (from 1961 to nowadays) on digital reverb design. it seemed
obvious to us that the musicality of the early digital reverb processors was partly due to the algorithms (the way the processor synthesized a natural reverberation), but also to their hardware
limitations.
the audio signal was severely high-cut filtered (10 khz was standard at that time) because of the limited sample clock. some units used 12 bit gain stepping converters to achieve a 15 bit resolution and
others used the first 16 bit converters. then the samples were digitally processed through a 16 to 20 bit fixed-point cpu with limited memory. the algorithms had to be simple but efficient to create the most
musical and versatile reverberation from these limitations. and the hardware itself added grain and warmness to the sound.
the technology used in bam is very close to the one used in these early digital reverberator units : 16 bit converters, 20 bit fixed-point processing, analog filtering and even an input transformer transient
simulator. some of the 7 reverb algorithms are influenced by the early structures, and some are brand new.
bam is a very musical and unique reverb processor. it combines the sound quality of a vintage reverb processor with the playability of a desktop effect in a compact format with midi control and 36 user
presets.
features:
7 algorithms: room, hall, plate, ambient, chorus, non-linear and primitive
input gain up to +15 db with analog clipping
pre delay up to 500 ms (with the pre delay pot) or 1500 ms (with the tap switch)
continuous control of the reverb size parameter for fine tuning
low-cut filter: 20 hz, 80 hz, 150 hz, 250 hz, 450 hz
hi-cut filter: 1,8 khz, 4,5 khz, 7 khz, 9 khz, 15 khz
chorus parameter can add modulation to the reverberator signal
tap tempo assignable to pre delay or reverb time
freeze switch
36 user presets
midi input: bam responds to ccs and pgm change
3 bypass modes: relay, spillover and aux
nice and simple user interface via 16 white leds
rugged steel enclosure
neutrik® jack connectors
power supply included
