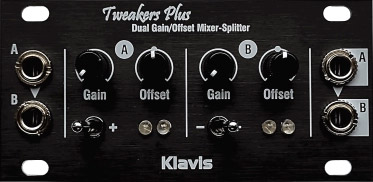

the tweakers plus is a slim companion module that allows fine tuning your modulations. two channels offer control over gain and offset. a three-position switch allows muting the channel and inverting the modulation polarity without impacting the offset. a pair of leds tell the amplitude and polarity of the output signal; with audio
signals, both leds light up together! normalizing of the inputs avoids using a multiple when a signal is dispatched to two targets. normalizing of the outputs offers an extra mixer, summing the two channels, very handy as an audio mixer too.
the tweakers plus is a perfect companion for modules whose modulation inputs lack such amenities. activating predefined settings at the flick of a switch is paramount for live situations. being able to prepare two sets of carefully adjusted settings for a given signal is even more useful.
features:
two independent channels also useable jointly as a mixer or splitter

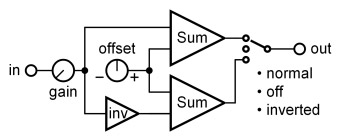

in each channel:
input and output jack
gain pot with up to 2.1 amplification
bipolar offset pot
3-position switch:
inverted polarity
channel off
normal polarity
led pair to indicate positive/negative signal level
offset setting is independent of the polarity switch

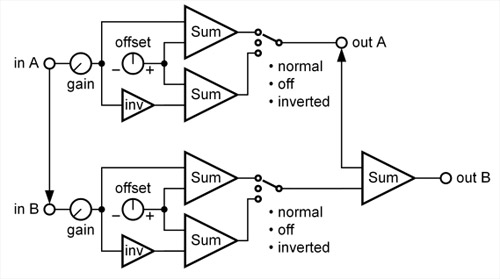

normalized input a can distribute the signal in both channels
normalized outputs can mix the two channels on out b
useable for audio
1u module
black bath-anodized brushed aluminium, 2mm thick
