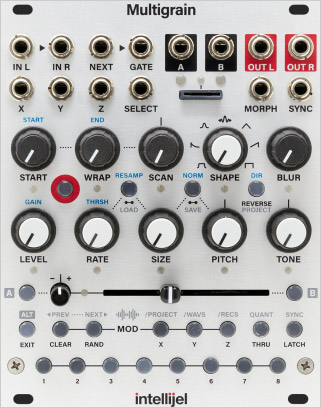

multigrain is an eight-channel stereo morphing granular sampler and live audio processor. layer grains and sequence from the eight available sounds-each one loaded from your microsd sample library, or recorded directly on the module. each of the eight sound buttons plays grains generated from its own sample or the live input; its own
pair of scenes-two completely different sets of granular parameters; a dedicated morphing fader and cv allow you to smoothly morph between these two scenes. dedicated select, next and gate cv inputs allow you to sequence the playback of all eight sounds.
assignable x/y/z cv as well as an internal random s&h generator, can be applied to any and all granular parameters at once. assignable mod a/b outputs let you modulate other modules in time with multigrain.
projects and presets allow you to save, load, and organize different sets of samples and settings. 48khz 24-bit stereo i/o and 32-bit floating point internal processing for hi-fi output.
features:
eight sounds available at once - each sound can be freely assigned from the microsd card, by sampling directly into the module, or generate grains from live input
latch your sound for drones or use unlatched for percussive bursts of sound
morph sounds between two scenes - two individual sets of parameters for each sound
13 dedicated granular parameters - 10 per-knob functions, 3 behaviour toggles
built-in per-sound pitch quantizer
clock sync toggle and input
blur (hifi reverb) - process your grains and l/r inputs through a unique reverb
two sampling workflows, a classic rec/stop/save sampler/resampler and a tape-loop style looping recorder-
sample the l/r inputs directly or...
resample (internally) the l/r outputs to reprocess your new sounds or...
capture loops with automatic crossfading of the loop point
optional normalize (on save) feature for maximum dynamic range
32 second always-listening recording buffer - capture the sounds you thought you missed
advanced sample trimming ui built into the module
use dedicated next, select and gate cv to surf or sequence through sounds
four assignable channels of modulation-
three assignable cv inputs
internal random source - per-parameter
all are assignable with attenuvertion to any and all parameters at once
many parameters have special random handling for stereo effect and probability.
two freely assignable 48khz modulation outputs-
morph position
grain trigger
grain envelope
grain pitch
envelope follower (input signal)
envelope follower (output signal)
random sample & hold via grain trigger
plenty of shortcuts available for advanced users
32gb microsd card (included)
front panel accessible
all settings, presets, and samples are stored on microsd
global /wavs folder with support for up to 128 globally available wav files
global /recs folder to store up to 1024 recordings (wav) made on the module
up to 48 projects, each /project folder supports-
up to 48 presets
up to 128 project specific wav files
48khz 24-bit stereo i/o and 32-bit floating point internal processing
supported sample format: 48khz 16-bit stereo wav, 32 second max.
