intellijel designs korgasmatron ii price : $390.00
korgasmatron ii expander price : $80.00

we are pleased to present the korgasmatron ii!

david dixon discovered some ways to derive even more fun and versatility out of the original circuit. the korgasmatron ii now features a completely independent six mode filter on each side! the modes are selected via a 6 position rotary switch. we have also added a special overdrive feature so that the output signal can be soft or hard clipped depending on how hard you drive it into the circuit. this is controlled via the input amp which starts clipping when you put the knob past 12 o'clock (assuming an standard 10vpp input waveform). there are switches to select hard or soft clipping. this effect is subtle on simple waveform sources and dramatic on more complex sources (like chords).

the xfade circuit has also been redesigned to use the same circuit as found in the ufade module with independent cv attenuation.

also being released is the korgasmatron ii expander module which allows for cv control of the q for each filter.

a very special feature of the korgasmatron ii design is that you can also have extra inputs to each filter that has its own selectable filter type independent of the main filter type. so for example i can have filter a on the main module set to lpf and then run a second signal into the same filter but in bpf mode. both signals come out of the same output.

this is really useful for complex layering or more creative applications like special feedback patching between the two inputs and outputs to create weird and aggressive filter responses.

just like the original korgasmatron this filter can go from clean and precise to howling and agressive. from classic ms20 type sounds to totally new territory all depending on how you play with the front panel controls.

korgasmatron ii:
20hp and skiff friendly
dual filter + xfade
six filter types per filter:
1. lowpass 1-pole
2. lowpass 2-pole
3. bandpass 1-pole
4. highpass 2-pole
5. highpass 1-pole
6. band reject (notch) 1-pole (different than notch on original)

both filters track 1v/oct over 3-4 octaves (makes a great vco)
switch to configure serial or parallel routing
output soft and hard clipping
resonance soft clipping control (q drive)
all knobs bolted to panel

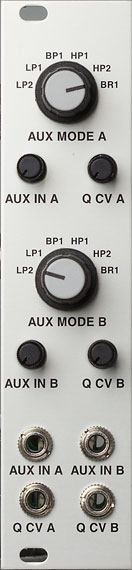

korgasmatron ii expander
6 hp skiff friendly (totally passive)
vc of q for filter a and filter b
auxiliary input for filter a and b with independent filter type selection
attaches to korgasmatron ii via single ribbon cable
