for stage, living room, and studio.

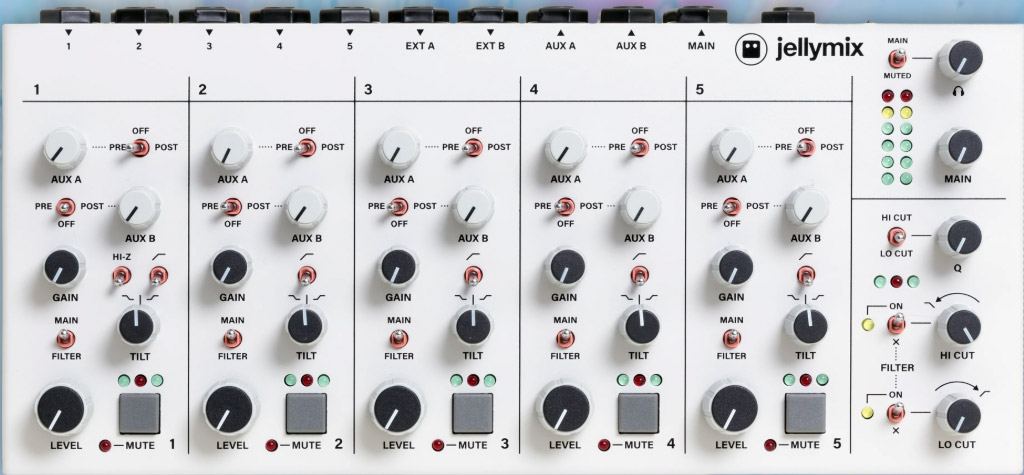

jellymix is a compact stereo performance mixer designed for electronic musicians. connect your favourite synths, drum machines, modules, and grooveboxes to the five stereo input channels. shape your sounds live with channel eq, the dual stereo resonant filters, and stereo effects on the two stereo aux busses. the tactile and
inviting interface of jellymix is perfect for knob twiddling, switch flicking, and/or button pushing your way to new sonic joys and dubby dreams; live on stage, your living room, or in the studio.
overview:
5 stereo channel strips with balanced ¼" line inputs and clickless mutes
2 stereo balanced aux sends per channel (pre/post w/ mono sum normalling)
2 stereo balanced ext inputs (summed to main bus, can be used as aux returns)
hi-z instrument input on channel one (for connecting guitars, etc.)
stereo svf master filters with separate lo cut (hpf) and hi cut (lpf) controls, dedicated resonance knob (q), and clickless bypass switches
main output level control with led meter
headphone output with selectable source (main or muted bus)
pleasing overdrive via soft clipping on all critical stages of the audio paths: channel gains/sums, eq, aux busses, filter bus, and main output bus
all analog design; high-quality/durable construction
neutrik jacks
alpha pots
salecom sealed switches
sound semiconductor vcas
low-noise/low-distortion op-amps
dimensions: 277mm x 122mm x 66mm / 10.9" x 4.8" x 2.6"
dc power supply included (mean well 30w 12vdc/2.5a)
five stereo channel strips:
input gain with up to +26db
hi-z instrument mode (ch 1 only)
switchable 150hz lo cut (with film caps)
tilt eq with 810hz center, 10db boost/cut
dual stereo aux sends with selectable pre, off, or post routing
main/filter routing switch
large rotary level control knobs
l and r signal level indicator leds (green) and overload led (red)
mute switch with clickless muting and led indicator
muted channels routed to the muted bus (cue for headphone monitoring)
soft clipping on channel gain stage, tilt eq, aux busses, and summing bus headphone monitoring)
main / filter bus:
dual stereo svf main filters with clickless bypasses
low cut (hpf) and high cut (lpf) controls
assignable filter resonance control (low/high/both)
main level control with soft clipping and led meter
headphone output with selectable source (main or muted bus)
soft clipping on the filter
specifications:
maximum output level: +26dbu balanced / +20dbu unbalanced
residual noise (all channels muted): -100dbu a-weighted, 20hz to 20khz
residual noise (all channels muted, main at unity): -85dbu, a-weighted, 20hz to 20khz
mix noise (all channels on and at unity gain, levels at max, main at unity): -83dbu, a-weighted, 20hz to 20khz
distortion (thd + n) @ 1khz 0dbu, 20hz to 20khz: line in pre to aux a/b out 0.005%, ext a/b in to main out 0.003%, line in to main out 0.07%
frequency response: ±0.5db 20hz to 20khz
inter-channel crosstalk: <-94db (1khz +4dbu)
left/right crosstalk: <-98db (1khz +4dbu)
in the box: jellymix mixer, dc power supply (mean well 30w 12vdc/2.5a)
dimensions: 277mm x 122mm x 66mm (10.9" x 4.8" x 2.6") - including feet/knobs
power: 12v dc/2a min., 2.1mm center-pin-positive
