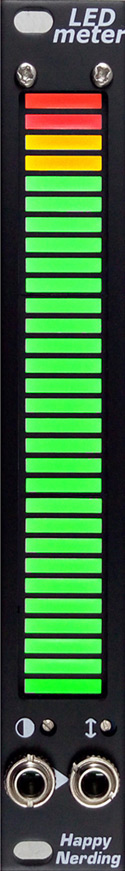

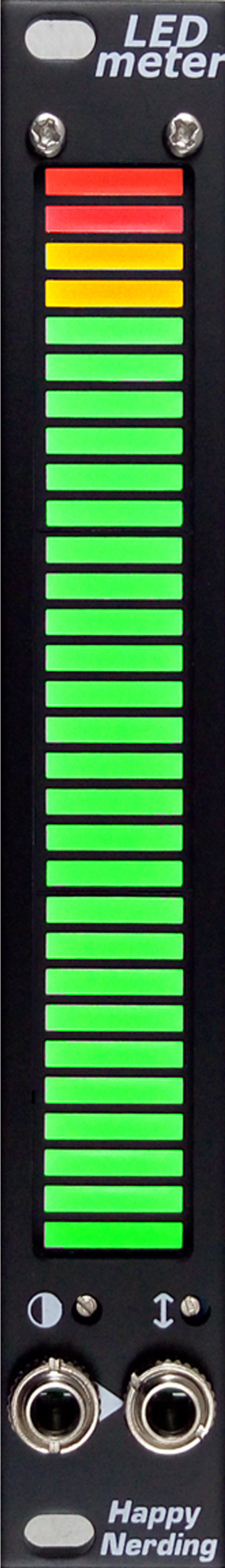

happy nerding led meter (green color with yellow-red peak segments): black price : $100.00

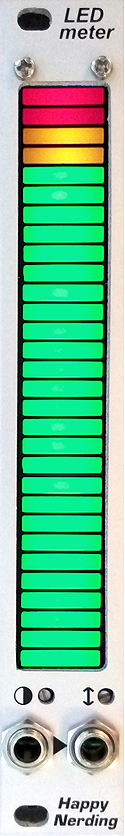

led meter (green color with yellow-red peak segments): silver price : $100.00

led meter is a handy utility module designed to show audio levels. there are total 30 led segments, each one roughly corresponds to 1 db of level, so it is 30 db of measurement level available with this module.

the module has an input for the signal to be displayed, and its buffered copy is sent to the output for further processing, so no external splitter is needed.

two trimmers are accessible via holes on the front panel: left trimmer adjusts brightness and right trimmer is used for the level adjustment. so the module can represent full scale signals ranging from 1 v to 12 v.

audio signal is first fully rectified before being displayed. thus, if the signal has unsymmetrical peaks in positive and negative sides, - none of these peaks is lost, as it would be in case only positive or negative side was displayed.

specifications:
measurement input level: can accept inputs ranging from [-1v...+1v] to [-12v...+12v] using onboard trimmer)
outputs impedance: 50 ohm
module depth: 4cm
module size: 4hp
power consumption: dpends on brighness with max at +150 ma at +12 vdc, -50 ma at -12 vdc
