catalyst audio mig vco: analog vacuum tube waveform creation
price : $549.00
|
|

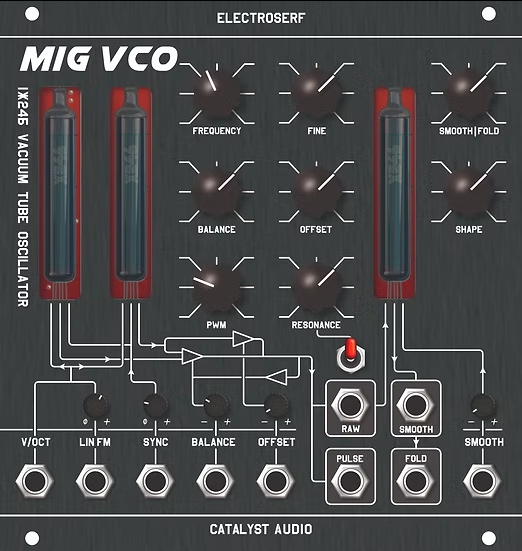

the mig vco is a vacuum tube based oscillator built from obsolete cold war detritus.
3 former soviet vacuum tubes (1960 - 1981) hum and sizzle as electrons are pushed through the various control grids and screens of the 1j24b pentode tubes. the sound is under control - but just barely. raw electrical aggression that feels both powerful - and like it's always on the edge of falling apart.
features:
1/v oct tracking
true vacuum tube waveform creation
low power draw
100% analog
nos cold war era vintage tubes
unique waveforms
all outputs available simultaneously
adjustable internal feedback pathways
specifications:
hp: 24
power draw (+rail): 88 ma
power draw (-rail): 116 ma
module depth: approx. 25mm
download the users manual here.
|
