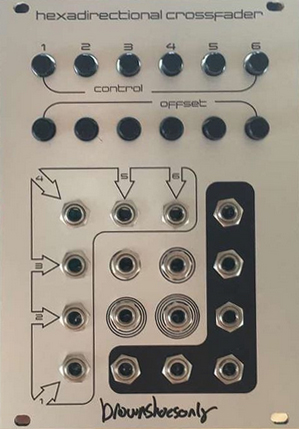

brownshoesonly hexadirectional crossfader: silver price : $400.00

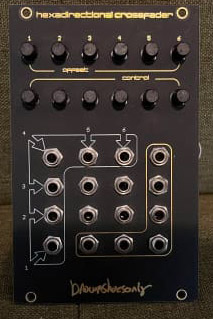

hexadirectional crossfader: black price : $400.00

a four input, six output video rate crossfader.

follow the arrows on the cv inputs 1 through 6 to see the direction of crossfade on the center inputs. outputs are in black.

a complex pattern mixer, feedback console, or simple crossfade utility. your patching provides limitless access to modulation.

functions as a lzx vbmv2 expansion module, channel 1 inputs a,b,c,d are sent post-gain-stage to the 4 center inputs for faster patching and less cable clutter.

specifications:
18 hp
36 mm
current draw: 120 ma +12v, 120 ma -12v, 0 ma 5v
