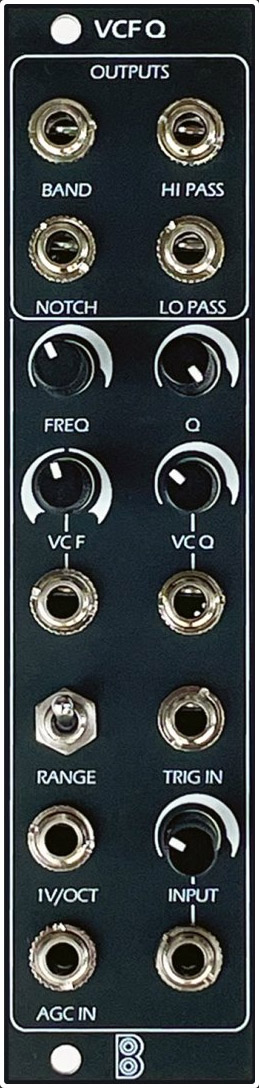

the bananalogue vcfq is a eurorack multimode filter module, based on 1970s analogue design philosophies.
the module has four outputs: hi pass, lo pass, notch, and bandpass. two inputs, one with attenuator that can be overdriven and one with "auto-gain compensation" - this input uses a vca to duck the signal to prevent distortion when the q increases. trig in allows a pulse to ring the filter for percussive effects. range switches the
response from audio to subaudio, allowing for processing of cv signals.
cutoff frequency has both an attenuverter input and a 1v/oct input (not thermally compensated). resonance has an attenuator input as well (this is where the vcfq gets its name from).
specifications:
6 hp
34mm deep
155ma +12v
15ma -12v
0ma 5v
