acid rain technology ziggurat
price : $399.00
|
|

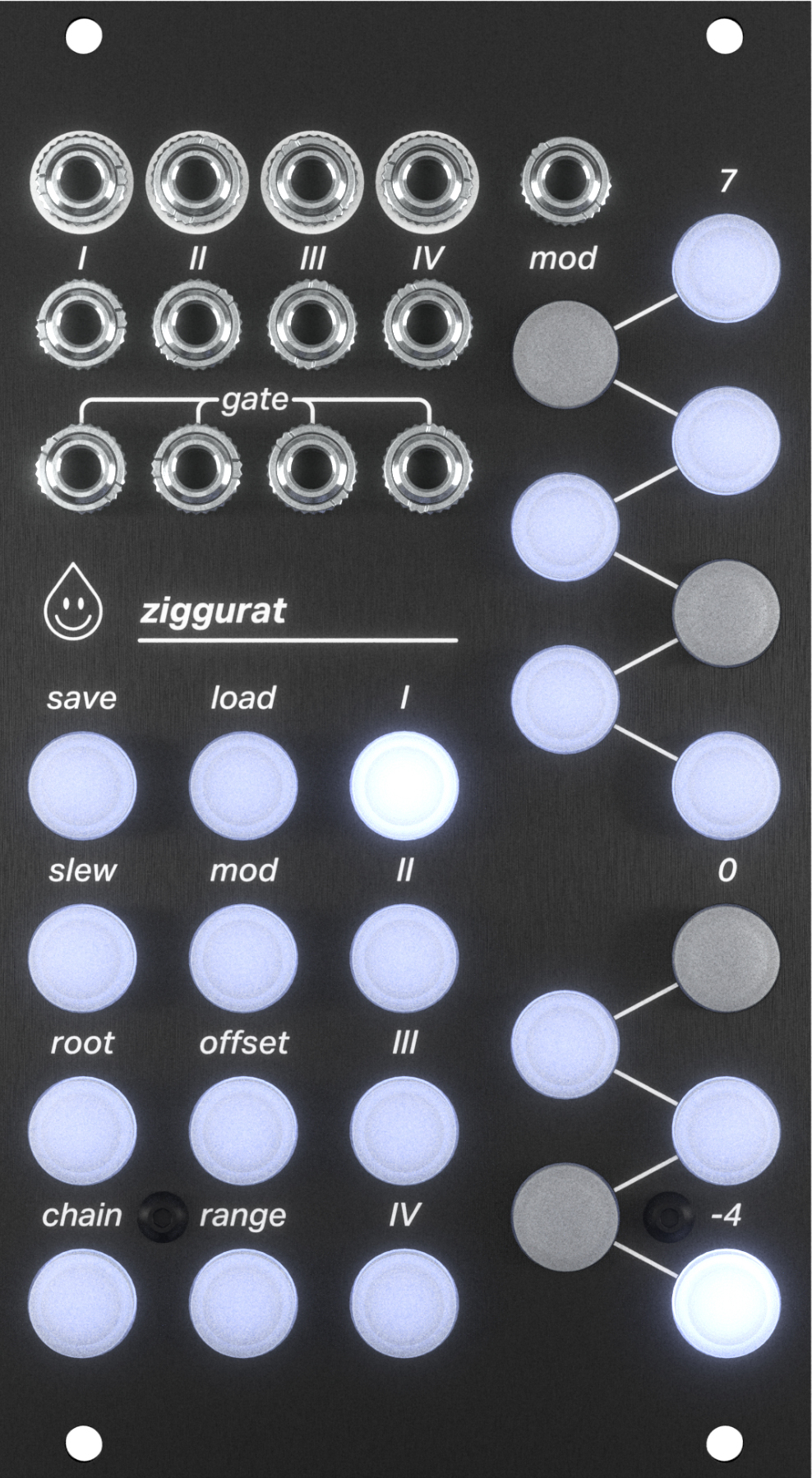

ziggurat is a 4 channel device designed to turn any combination of control voltages and gates into musical pitch voltages for your eurorack system.
features:
notes can be turned on and off as desired on the one octave keyboard - creating a custom note mask to quantize through- easily link multiple channels together by holding their buttons down together for 1 second
save + load - 35 save slots (5 banks of 7) available to store and recall all module settings
slew - apply a slew to any note in your note mask. adjust the slew time from 0.1 sec to 5 sec
root - apply a semitone offset to a channel output to change the musical key/root note
offset - apply a semitone offset before quantization
range - adjust the channel output voltage range in octaves from -4v to +8v. simply press the lower and then upper bound of the range you want
chain - enter a series of notes in sequence (like an sh101 sequencer). a gate input will step through them in order, and an input voltage of 0-5v will move through the notes entered in either direction
mod - assign the mod cv input to load, slew, root, offset and range to dynamically modulate these channel parameters
|
