abstract data synthex (no power supply) price : $150.00

synthex gives you instant access to full-force, knob-turning analog power.

whether you're a musician, producer, sound designer, dj or live performer - all the best of analog fatness and warmth can now be yours.

at the heart of synthex is a true voltage controlled oscillator (vco) that outputs square and triangle waveforms - but that really is just the start.

use the two external audio inputs to create massive hard sync and fm effects, control the mix and levels with dedicated cross-faders, reconfigure the internal signal path with the flick of a switch and lose yourself in a world of pure analog bliss.

bored of lame, thin sounding soft synths? tired of using your mouse to turn knobs? need a sound that is truly your own? synthex is your synth.

technical specs:

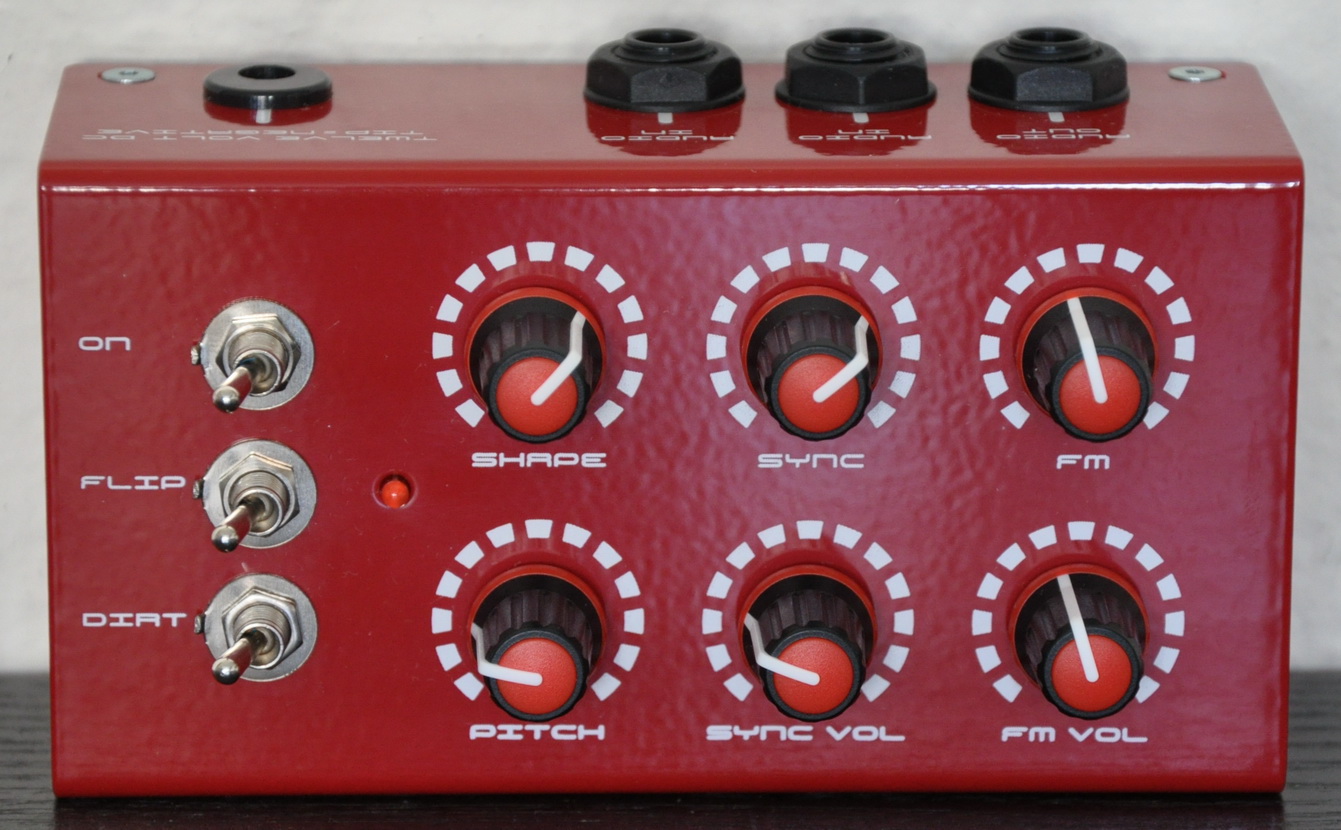

switches (top to bottom): (power) on, (input) flip, (effect) dirt
knobs - row 1 (l to r): (waveform) shape, (x-fade) sync, fm
knobs - row 2 (l to r): (vco) pitch, sync vol, fm vol
inputs (6.5mm mono): (hard sync) audio in, (fm) audio in
output (6.5mm mono): audio out
power (not included): 12v dc, 2.1mm socket, tip = negative
dimensions (mm): (w) 132 x (h) 68 x (d) 77
weight (kg): (unpackaged) 0.4
case construction: 0.9mm mild steel (cr4)

check out a youtube clip here.

check out the user manual here
