back to main vermona page


vermona
twincussion

price : $429.00

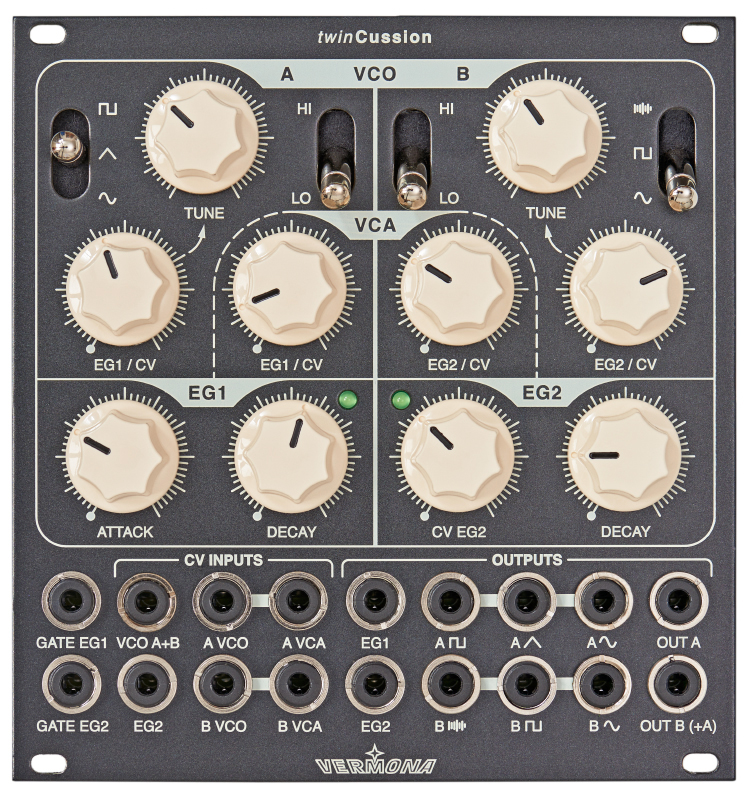

twinCussion

dual percussion module
twincussion is a dual channel drum-synthesizer module. its components are explicitly designed to create percussive sounds while its flexible interconnections make it a must-have for rhythm based modular systems.

special units a and b
twincussion offers two sensibly structured sound engines, each consisting of an oscillator (complemented by a noise generator in engine 2), a voltage controlled amplifier and an envelope generator. both sound engines can be used independently or being combined for more complex sounds. the internal structure can be edited and expanded at will, thanks to the multiple in- and outputs being available.

versatile expert
twincussion is a versatile sound chameleon. although its sound engine is specialized in electronic drum sounds, it is not limited to specific instruments of this genre. this module generates pushing bass drums, prominent snares and chirping hi-hats with ease. and there is much more to twincussion if using a little creative patching. unleash numerous sounds like wooden clicks, metallic pings and a lot more.

specifications:
levels
eg1/eg2 trigger threshold: +2 v
eg1/eg2 output levels: +5 v
max. cv input levels: ±5 v
max. output levels vco a/vco b: <7.5 vss
max. output levels noise generator: <7.5 vss

maximum power consumption
+12 v: 105 ma
-12 v: 70 ma
+5 v: -

dimensions / weight
width/height: 24 hp (121.5 mm) / 3 u
depth: 45 mm
weight: 380 g
