back to main synthrotek page


synthrotek
vco

price : $125.00

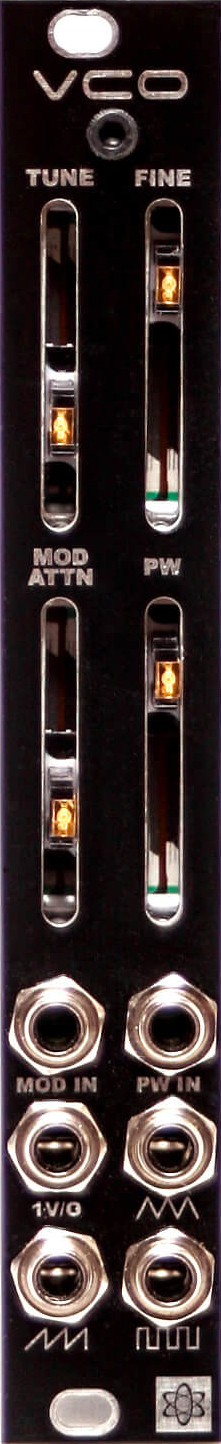

VCO

the vco is an analog voltage controlled oscillator with a wide frequency range and 8 trackable octaves. it uses the curtis cem3340 reissue chip, which is famous for its outstanding sound quality. this is the fully assembled version of the vco.

features:
simultaneously available triangle, saw and square wave outputs
frequency range: 5hz to 28khz
fm input and attenuation control
pwm input and attenuation control
1v/o input, tracks 8 octaves

specifications:
width: 4hp
depth: 53mm
power draw: +12v: 42ma, -12v: 31ma

includes power cable and module screws.

download the users manual here.
