roland tr-8 rhythm performer price : $499.00

authentic tr-808 and tr-909 experience in a modern, performance-ready instrument

the tr-8 is a performance rhythm machine that melds the legendary sound and vibe of the tr-808 and tr-909 with features and functions for the modern age. genre-defining sounds, classic effects, unprecedented live pattern manipulation, and solid, intuitive performance controls. it's the tr...evolved.

capturing the originals
full reproduction of the classic tr-808 and tr-909 rhythm machines, based on original design spec sheets and detailed analog circuit analysis of many original tr machines, including roland's own pristine units

newly developed analog circuit behavior (acb) technology allows part-by-part analyses and faithful recreation of tonality and behavior, including the smooth variations of tone that occur when you work the controls of each instrument

obsessive attention to detail, such as reproducing the original tr's unique variations in tone that occur when multiple instruments are entered in accented steps

authentic 16-step sequencer with faithful tr-rec behavior, including a and b pattern variations and the ability to play instruments and record to steps in real time

tr evolved
16 stunning kits made up of 11 instrument types, including custom dream kits that use both tr-808 and tr-909 sounds

large tempo knob with tap tempo button and continuous fine and shuffle adjustment knobs

control the intensity of the accent function with a dedicated knob

per-step reverb and delay effects with dedicated knobs

mix sources connected to the external in jacks with built-in per-step side chain function for rhythmic ducking and gating effects

scatter lets you freak and tweak your grooves with real-time control and perfect sync

7 segment, 4 character led display and 16 per-step pads with bold, full-color leds

real-time pattern creation up to 32 steps with on-the-fly step count adjustment

rec/play modes have been eliminated, enabling seamless switching between step input and real-time pattern making and performance

real-time play of 4 different types of rolls (8th, 16th, vari 1, vari 2) and per-instrument mutes

pattern copy and pattern randomization for rapid, spontaneous creativity

two assignable analog outputs and full parallel outputs via usb for total mixing flexibility

the lineage
unleashed upon an unsuspecting world in the 1980s, the tr-808 and tr-909 produce arguably the most influential drum sounds in modern music. not only have they appeared on thousands of dance tracks over the course of three decades, they've helped define the sound of entire musical genres. from rap and house to techno and trance, the tr-808 and tr-909 have left an indelible mark on the art and culture of music. roll the drums...

the sound
in developing the tr-8, we've obsessively analyzed and faithfully recreated every detail and nuance of the analog circuitry of these legendary rhythm machines-the boom and snap of the 808; the thud of the 909; the robotic click of an 808 rim shot or a classic 909 snare roll. it's all here. but not content with mere recreations, we've enhanced these classic instruments with capabilities that go far beyond the original units.

tune and decay knobs are now present on every instrument, and the bass drum and snare drum have additional controls such as attack, snappy, and comp. this allows for a wide variety of tones, from subtle ambient percussion to pounding dance grooves. per-step effects and the massively addictive scatter function take things into entirely new territory.

with the authentic tone and character of the original units and new sound-tweaking capabilities inspired by legions of users, the tr-8 breathes new life into the sounds we all know and love.

the feel
make no mistake-the tr-8 has been carefully designed from the ground up as an instrument to be played. every control has a solid, predictable feel, with each drum instrument having robust, "playable" faders. numerous lighted knobs and rgb buttons give both real-time performance feedback and a striking appearance on stage.

pattern creation is creative and intuitive using an evolved version of the tr-rec method, which originated in the tr-808 and eventually became the standard for electronic rhythm programming. based on detailed analysis of the original tr-808, the tr-rec behavior has been faithfully modeled in the tr-8. but the tr-8 goes well beyond the original, allowing you to seamlessly switch between programming and performance modes, and to introduce lots of groovy rhythmic variations from subtle snare fills to total glitch meltdowns.

what is scatter?
scatter is a unique performance function that gives you detailed real-time control over variations in your patterns and any incoming external input signal.

scatter can reverse, glitch, gate, truncate, stutter, and perform all manner of rhythmic variations from subtle to extreme, and all in perfect sync

pick from 10 different types of scatter and smoothly adjust the intensity-or "scatter depth"-with the large, comfortable dial

seamlessly switch between scatter patterns and quickly toggle scatter on/off for cool variations when and where you want them

try it...you'll like it!

a few more things
the tr-8 looks great and is designed to work seamlessly with other products in the aira series. in addition, you can connect the tr-8 to your computer via usb to send and receive both audio and midi data, including midi clock information for syncing with external devices and other aira units.



specifications:
user drum kits: 16

user patterns: 16

steps per 1 measure
1 - 16 steps x 2 (variation a/b)

tempo: 40 - 300

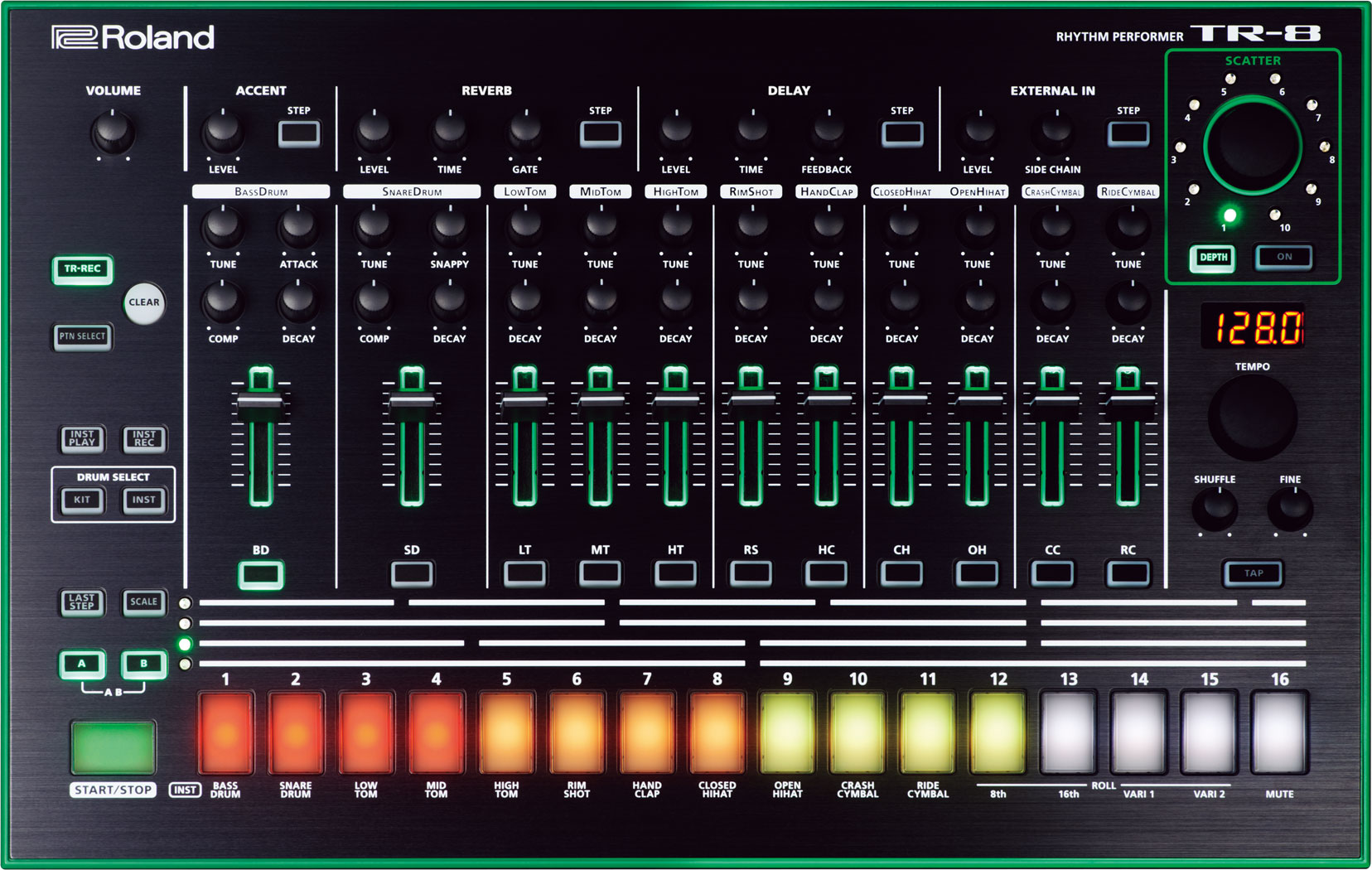

instruments & controls
bass drum: level, tune, attack, comp, decay, inst select
snare drum: level, tune, snappy, comp, decay, inst select
low tom, mid tom, high tom, rim shot, hand clap, closed hihat, open hihat, crash cymbal, ride cymbal: level, tune, decay, inst select

effects and controls
accent: level, step
reverb: level, time, gate, step
delay: level, time, feedback, step
external in: level, side chain, step

mode
tr-rec, pattern select, inst play, inst rec, drum kit sel, drum inst sel

controllers
volume knob
scatter knob
tempo knob
fine knob
shuffle knob
pads: 16
mode buttons: 6
clear button
variation buttons: a, b
scale button
last step button
start/stop button
scatter on button
scatter depth button
tap button
power switch (rear)

display
7 segments, 4 characters (led)

effects
reverb, delay, side chain

scatter
types: 10

nominal input level
-10 dbu

input impedance
100 k ohms

nominal output level
-10/+4 dbu (selectable)

output impedance
mix out, assignable out: 1 k ohm
phones: 130 ohms

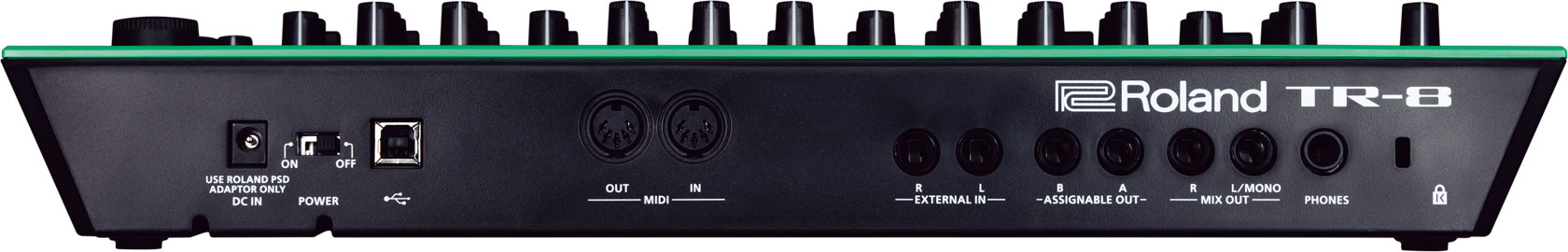

connectors
phones jack: ¼-inch stereo phone type
mix out (l/mono, r) jacks: ¼-inch phone type
assignable out (a, b) jacks: ¼-inch phone type
external in (l, r) jacks: ¼-inch phone type
usb port: usb type b (audio, midi)
dc in jack

usb
audio, midi

power supply
ac adaptor

current draw
1,000 ma

accessories
owner's manual
leaflet "using the unit safely"
ac adaptor

size and weight
width: 400 mm, 15-¾ inches
depth: 260 mm, 10-¼ inches
height: 65 mm, 2-9/16 inches
weight: 1.9 kg, 4 lbs. 4 oz.
