back to main roland page

system-500 530 dual vca

price : $299.00

Roland System-500 530

based on the classic system-100m modular synthesizer, the system-500 is a fully analog recreation of one of the most revered electronic instruments of all time. newly designed in eurorack format, the system-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. built in the usa and assembled in japan, the system-500 is made to exacting standards with top-quality components and solid controls. and it's surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

classic system. new format.
the system-500 consists of eurorack format modules that you can mix and match in any combination to create the ultimate roland modular synthesizer. each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. the system-500 is a compact, powerful system that opens up vast possibilities for sound design and musical exploration.

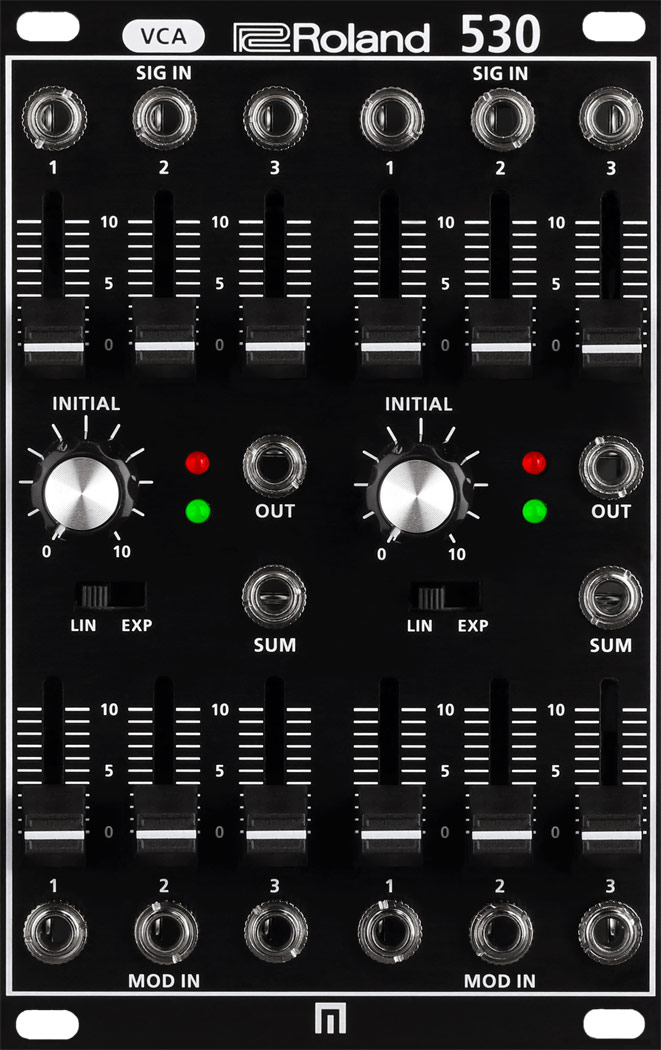

530 dual vca
the 530 dual vca (voltage controlled amplifier) features two independent voltage controlled amplifiers for controlling the loudness of audio signals. each vca has three sliders for an audio input mixer, three sliders to mix cv inputs, and a selector switch for linear or exponential response modes.

signal in 1 slider
signal in 2 slider
signal in 3 slider
modulation in 1 slider
modulation in 2 slider
modulation in 3 slider
liner/exponential switch
initial knob

load indicator
overload indicator

signal in 1 jack: miniature phone type
signal in 2 jack: miniature phone type
signal in 3 jack: miniature phone type
out jack: miniature phone type
sum jack: miniature phone type
modulation in 1 jack: miniature phone type
modulation in 2 jack: miniature phone type
modulation in 3 jack: miniature phone type

power supply
eurorack power

current draw
50 ma (+12 v)
35 ma (-12 v)

owner's manual
leaflet "using the unit safely"
eurorack installation screws (4 pcs)
eurorack power cable

81 mm
3-3/16 inches
16 hp

58 mm
2-5/16 inches

129 mm
5-1/8 inches

194 g
7 oz
