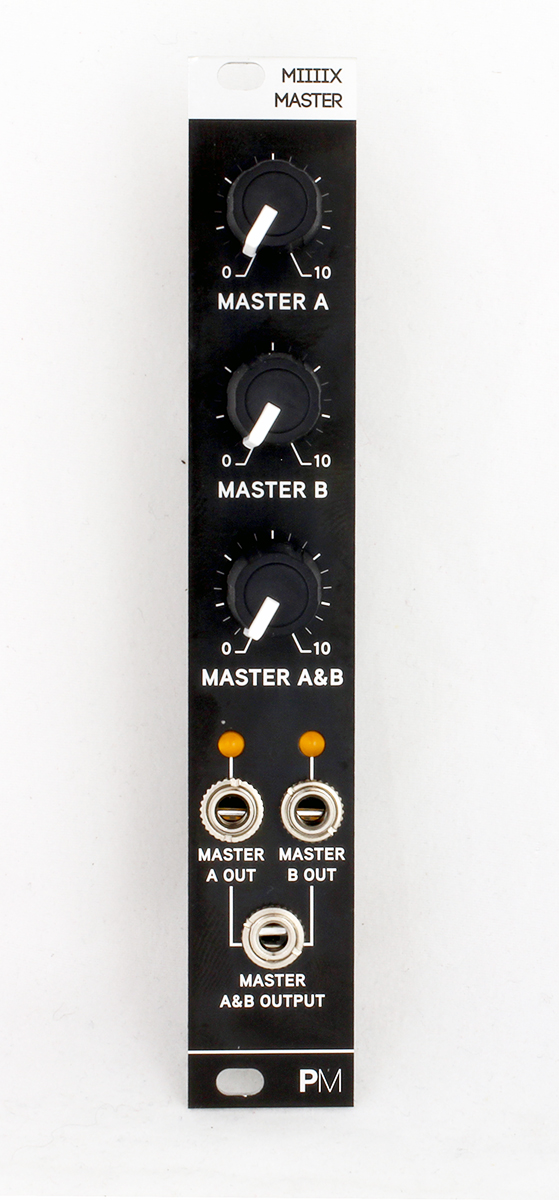

promodular miiiix master price : $125.00

to use master, attach the expansion cable onto the header on the back of the module and the other end onto one or more (up to 4) of the the miiiix expansion headers marked “master”. be sure that the red stripeon the cable is next to the markings on all modules.

master can be used with at least one miiiix to add an additional attenuatable stereo/line/headphone output and dedicated attenuatable master outputs for the a/b mixes.

master is a recommended expansion when 2-4 miiiix modules are used together and provides up to 16 channels to be routed to the master a/b and stereo outputs.

power: +/- 50ma

click here to download the manual.
