meris

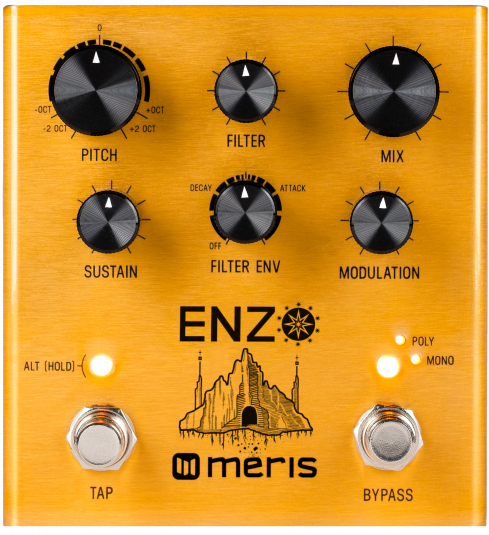

enzo: multi-voice instrument synthesizer

price : $299.00



Enzo: Multi-Voice Instrument Synthesizer

a multi-voice synthesizer that will track your guitar for tight monosynth leads, complex chord polyphony, or multi-note sequenced arpeggiation. all without any special pickup installation. just put it on your board and discover your own reality. the enzo isn't limited to guitar; use it on any instrument whether drum machine, vocals or other synths. completely transform your input signal and synthesize. use the full synth palette of multimode analog style synth filters, ring modulation, envelopes and much much more to drive punchy, thick synth textures. or, explore an altered state of your pure instrument signal by transforming it with pitch, time and modulation effects. plug in to a revelation generator.

features:
colossal multi-voice dual oscillator synth architecture with selectable waveforms
three synth modes: poly synth, mono synth, and arpeggiated synth
two distinct tunable envelope types: triggered and envelope follower
tunable portamento time for smooth transitions between synth notes and pitch shifts
sustain control for extending your volume envelope all the way to endless synth hold
two tap delay with time, feedback, modulation, and special two stage level control (530 ms max delay time)
adjustable compressor with threshold and mix for your input signal (dry mode)
custom 6 mode filter with frequency, bandwidth (resonance), and envelope
wide ranging ring modulation with ability to assign envelope control
digitally controlled analog mix control
stereo input and output
switchable input / output headroom level for guitar or synth / line level
expression pedal control over all parameters simultaneously
presets available via external 4-preset switch or midi
midi in/out over trs via the exp jack
external tap tempo over trs
midi beat clock synchronization
premium analog signal path and 24-bit ad/da w/32 bit floating point dsp
premium analog devices jfet input section
color - translucent coat of vibrant gold over brushed aluminum
designed and built in los angeles, california u.s.a.

specifications:
premium quality 24 bit a/d and d/a
32 bit floating point dsp hardware
premium low noise analog signal path throughout
digitally controlled analog dry path for wet/dry mix
analog devices jfet input circuitry
selectable true bypass (relay) or analog buffered bypass
Durable translucent coat of vibrant gold over brushed aluminum
current draw < 150 ma
dimensions - 4.25" wide, 4.5" long, 2" tall

download the user manual here.
