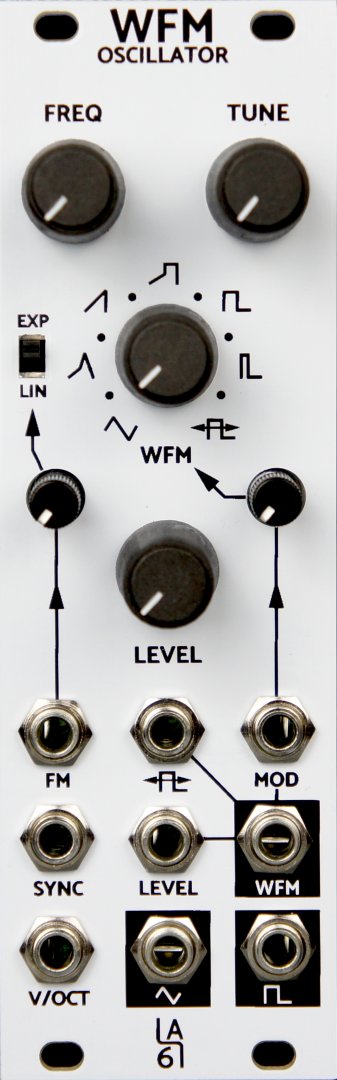

an analog vco with a unique wave shaping circuit. based on the 1970s kobol synthesizers, the wfm output provides a continuously variable wave shape from triangle to saw to modulated pulse, with many
interesting points in between. voltage control over wave shape and output amplitude allow for wide timbral variations.
features:
three simultaneous waveform outputs: triangle, pulse, and wfm
fm input with attenuator, switchable between linear and exponential
v/oct input
sync input
wfm "mod" input with attenuator
wfm "level" input
wfm variable pulse input
10hz-25khz frequency range
8+ octaves tracking
specifications:
8hp
35mm depth
current draw: 65ma/65ma +12v/-12v
reverse power polarity protection
