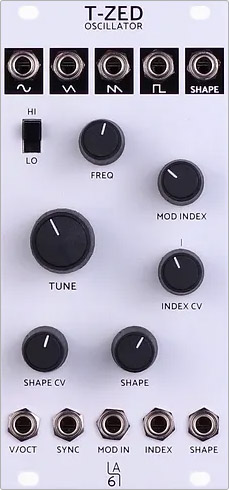

an analogue oscillator with through-zero phase modulation. the core of the t-zed is the ssi2130 integrated circuit. voltage controlled wave shape and phase modulation index allow for automated sonic versatility, and 2 separate frequency ranges mean the t-zed
can be used as an audio or cv source.
features:
simultaneous sine, triangle, saw, square, and variable shape outputs
phase mod input with bipolar index circuit
v/oct input tracks 10 octaves
freq spans 10 octaves, tune spans 1 octave
hard sync input
shape output (sine to triangle to saw) with cv input and attenuator
frequency range hi: 10hz-25khz
frequency range lo: 0,1hz-200hz
specifications:
12hp
25mm depth
current draw: 55ma/45ma +12v/-12v
reverse power polarity protection
