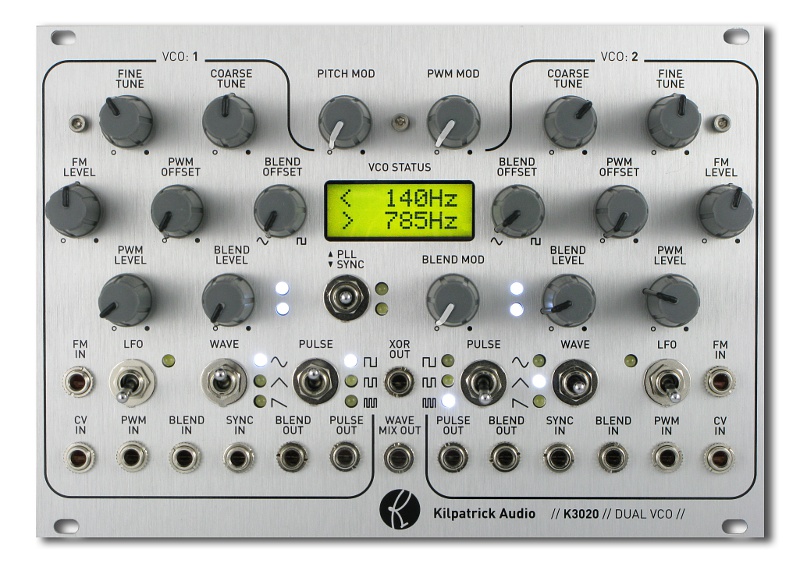

eurorack dual voltage controlled oscillator - 36hp
the k3020 dual vco is a state-of-the-art dual analog voltage controlled oscillator that is both musically and technically superb. the design is optimized for great sound and playability for both tonal and
experimental music. both channels also function as excellent lfos capable of generating interesting modulating voltages. dual independent power supplies provide clean power separately to each channel for
improved stability. each vco core is comprised of a monolithic vco chip which provides sine, triangle and ramp waves with excellent linearity and low distortion and high-end matched transistors are used for
good cv volt/octave tracking. internal factory-trimmed adjustments are provided for cv volt/octave and high tracking on each channel.
control and signal routing:
by offering waveform and mode adjustments through computer-controlled analog signal routing as well as internal vca-based mixing circuits, noise-free switching and blending between waveforms is possible. all
modes are shown with leds on the front panel, and the current frequency of each vco is displayed on an lcd readout. the use of computer control over the signal routing means that audio signals never pass
through the front panel pots and switches.
input and outputs:
inputs are provided on each channel for cv (volt/octave) and fm tuning inputs, pwm and blend cv inputs for driving the wave shaping stages, and a sync input for hard sync effects. outputs are provided for both
the blend circuit output as well as a dedicated pulse output of only the pwm and pulse shaping sections. two special outputs are provided that contain signals from both channels. the wave mix output offers
only the wave signals from each channel, and the xor output provides a digital multiplication of both channels which works similar to a ring modulator, but outputs square waves.
cross modulation capabilities:
in addition to offering two very capable independent vcos, the cross modulation section allows control of vco2 from vco1. cross mod controls allow pitch, pwm and blend mixing modulation, and the internal pll
and sync circuits allow the vco2 oscillator to be controlled by vco1 in a variety of different ways without requiring external patch cables. with only an audio output cable attached, an enormous variety of
experimental sound possibilities exist. as part of a complete modular system the possibilities are virtually endless.
features/specifications:
eurorack (3u) form factor - 36hp width
dual vco with independent power supplies per channel
backlit lcd screen with frequency counter for each channel
led indication of selected switch positions and vco core activity
each channel:
1v/octave cv input - factory trimmed for 1v/octave response
linear fm input with level control
fine and coarse tuning controls
normal vco frequency range: 2hz to 15khz
lfo mode switch - period: greater than 70 seconds to 8ms (120hz)
temperature compensated exponential converter with super-matched transistors
wave shaper with sine, triangle or ramp waveforms - switch selectable
pulse shaper with three pulse types - switch selectable
voltage controlled mixing between wave and pulse waveforms
high-end blend vcas with ultra-low distortion and linear control
sync input for hard syncing of vco core
pwm input with level and offset controls - full deflection with 5vpk-pk
blend vca control input with level and offset controls - full deflection with 5vpk-pk
blend output - output from the blend vca containing wave and/or pulse waveforms
pulse output - dedicated output from the pulse shaper containing pulse waveform
internal cross modulation controls:
pitch modulation control - exponential frequency modulation of vco2 from vco1
pwm modulation control - modulate vco2 pulse width from vco1
blend modulation control - blend between wave and pulse waves on vco2 from vco1
internal pll mode for locking vco2 to vco1
internal sync mode for syncing vco2 to vco1
wave mix output - buffered mix of vco1 and vco2 wave outputs - for fm effects
xor output - digital exclusive or output from both vcos - for ring mod-like effects
all inputs and outputs are tolerant of +/-12v
all outputs drive 10vp-p with 1k output impedance
requires +12v (200ma), -12v (100ma) - 16 pin doepfer-style power cable used - approx. 3.5w total power consumption
designed and made in canada using high quality parts.
warranty: 1 year
