flame
dualkey

price : $250.00

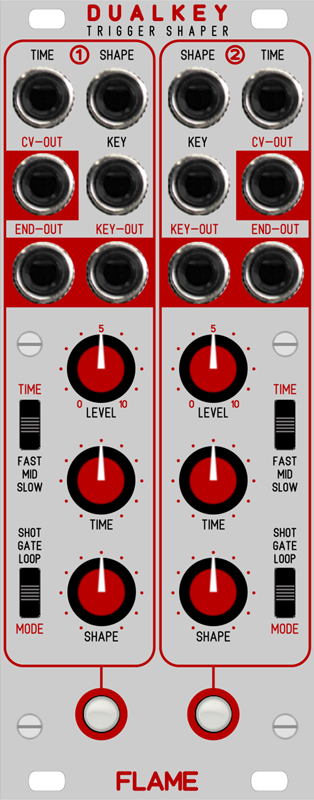

Dualkey

the flame "dualkey" module is a small pingable trigger envelope module, designed for small mobile euro racks. there are two channels with following functions:

shape: voltage controllable ar-envelope (release phase channel 1=logarihtmic 2=linear)
time: voltage controllable time of the ar envelope
level: set the output voltage of the ar envelope
end-out: trigger output of the end of the envelope circle (like a trigger delay)
key-out: trigger/gate output of the key
key-in: trigger input for pingable envelope

there are three play modes:
shot: one shot of the envelope
gate: hold on the envelope after the release phase
loop: the envelope play in loop (like a lfo) while hold down the key

specifications:
+ 40ma / - 5ma
euro rack format 3u / 10hp 50,5x128,5mm

click here for the user manual.
