model:samples: six track sample based groovebox

price : $299.00

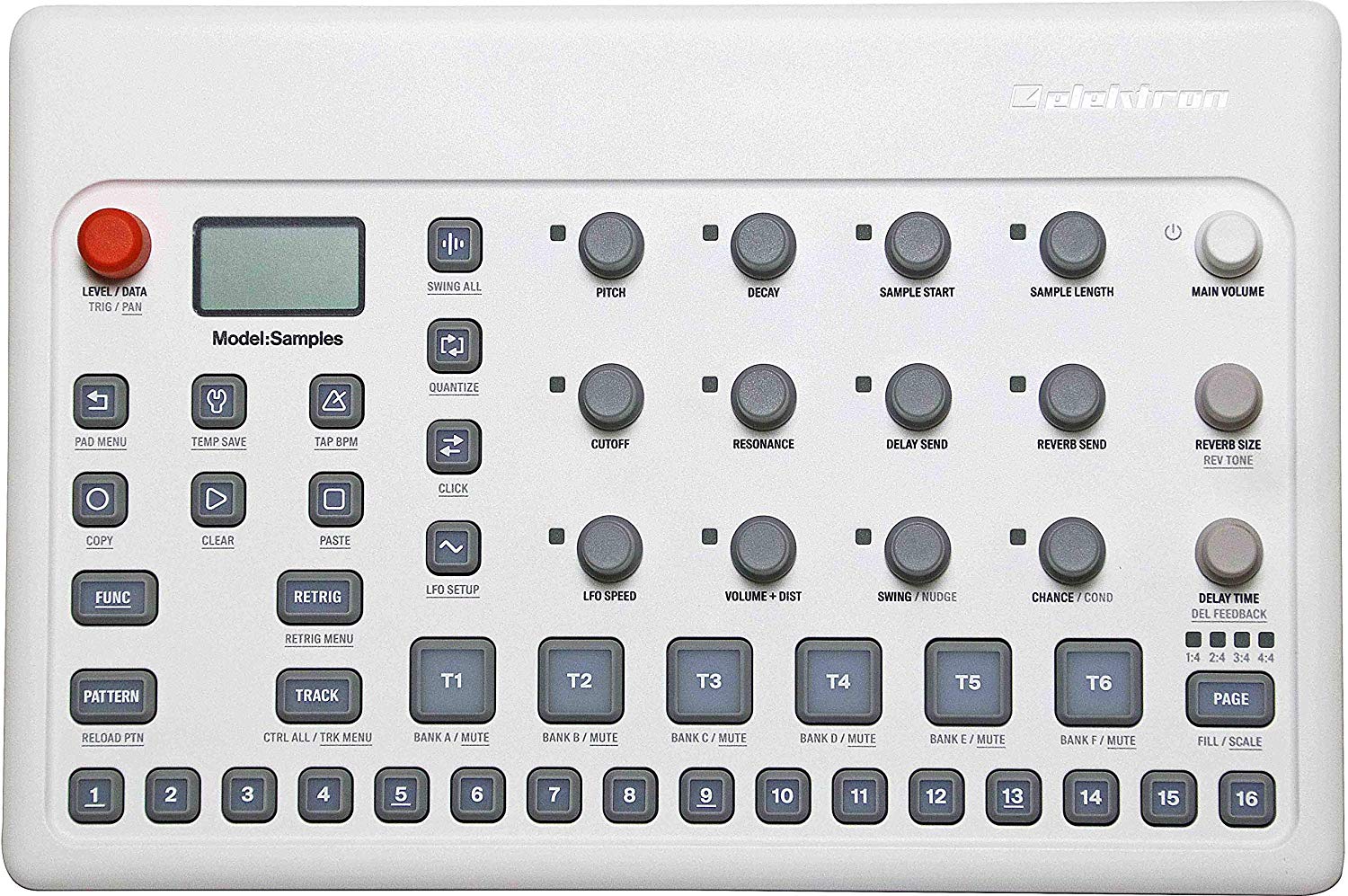

Model:Samples: Six Track Sample Based Groovebox

meet the six track groovebox that offers massive sound in a compact size. you get pretty much all of the elektron superpowers in a sleek, lightweight, and accessible package. loads of useful presets and loads of space for your own sounds. the controls are right there at your fingertips. a truly plug-and-play bundle of joy!

packed with great sounds.
the sound engine uses high-quality digital samples. there are 300 preset sounds supplied by splice, ranging from the familiar kicks, snares, and hi-hats to exotic, never-before-heard ones. with a few tweaks, you can easily personalize any sample until it sounds just the way you want it. transfer your own samples into it, or use any of the expertly crafted custom sound packs.

dedicated knobs.
as an elektron first, this machine offers a complete set of tactile controls, with one function per knob. they're all right there on the front panel; just grab a knob and twist it. unleash your music spontaneously using the six tough, velocity-sensitive pads. record your every move live, or punch in your creation one step at a time using the superb elektron sequencer.

ready to go.
at under one kilogram, you're getting the benefits of a light and convenient machine that will surprise you with its snarling sonic power.

control all lets you twist your sounds to oblivion. then use reload to take you back to where you started
use parameter locks to automate parameters. each step can have a totally different sound
with sample locking you can really flex that sequencer muscle. assign different samples to individual steps of a pattern, allowing you even more creative space
load six samples at once – just like a kit. great when you have made a pattern with parameter locks, lfos etc… load six new samples to instantly experiment and come up with unique and unexpected results
write basslines and melodies using chromatic mode
new chance parameter. chance determines the possibility whether the sequencer steps on a track are triggered or not. combining chance with the control all functionality can lead to many interesting results and happy accidents
record sequences with or without quantization. steps can be micro-timed with individual swing control per track
individual step length per track
individual tempo multiplier per track
class compliant usb audio 2.0

6 audio tracks (all of which may be used as midi tracks as well)
6 × velocity sensitive pads
96 projects
96 patterns per project
1 × sample playback engine per track
1 × resonant multimode filter per track
1 × assignable lfo per track
delay and reverb send fx
elektron sequencer up to 64 steps with unique length and scale settings per track
real-time or grid recording of notes and parameters
64 mb sample memory
1 gb storage
class compliant usb audio 2.0
1 × ¼" headphones output
2 × ¼" balanced main outputs
1 × hi-speed (micro) usb 2.0 port
1 × 3.5 mm standard audio minijack (trs) for midi in
1 × 3.5 mm standard audio minijack (trs) for midi out/thru
2 × slots for attaching powerhandle bp-1 (battery pack to be released at a later date)

included in the box
power supply psu-4
micro usb cable usb-2
2 x midi adaptor (5-pin din to 3.5mm trs minijack)

download the user manual here.
