elektron
digitone

price : $899.00

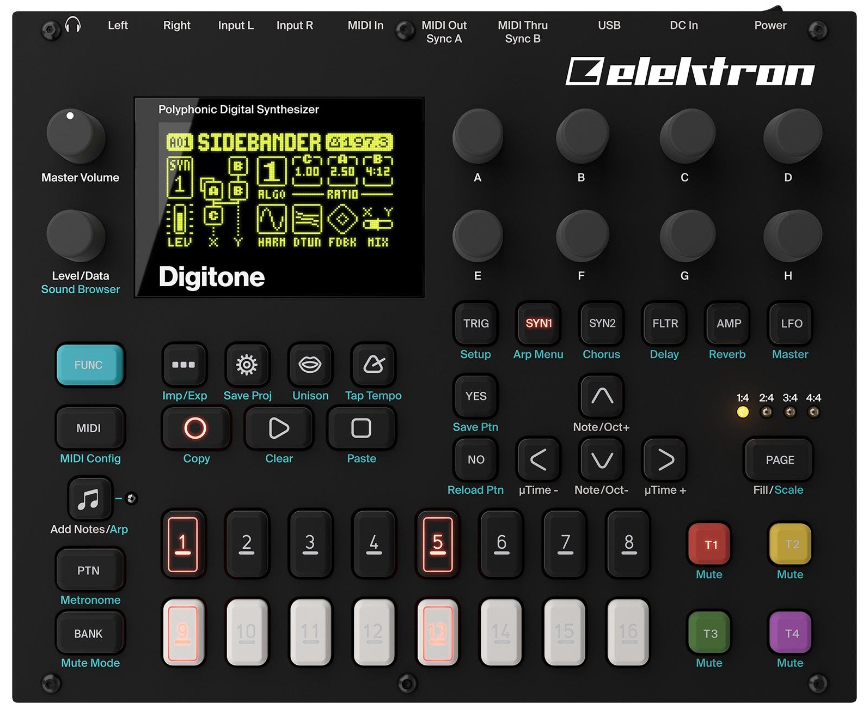

Digitone
digitone: open box

price : $799.00



eight voice polyphonic digital synthesizer

a new deal
digitone represents our vision of how fm synthesis can be revitalized and modernized. here's how: combine fm sound generation with a classic subtractive synthesis signal flow. from jagged chaos to mellow soundscapes in less than a second. digitone is one unique box.

ultra digital
choose from multiple fm algorithms featuring carefully selected parameters. shape the tones with powerful filters. arrange them with the intuitive elektron sequencer. round off with the stellar effects. now enjoy the most spectacular sounds, seemingly emanating from some parallel universe.

specifications:
synth voice features
8 voice polyphony (multitimbral)
multiple fm algorithms
1 ✕ multimode filter per voice
1 ✕ base-width filter per voice
1 ✕ overdrive per voice
2 ✕ assignable lfo per voice

sequencer
4 synth tracks
4 midi tracks
1 arpeggiator per track
polyphonic sequencing
individual track lengths
parameter locks
micro timing
trig conditions
sound per step change

send & master effects
panoramic chorus send effect
saturator delay send effect
supervoid reverb send effect
overdrive master effect

hardware
128 ✕ 64 pixel oled screen
2 ✕ ¼" impedance balanced audio out jacks
2 ✕ ¼" audio in jacks
1 ✕ ¼" stereo headphone jack
48 khz, 24-bit d/a and a/d converters
hi-speed usb 2.0 port
midi in/out/thru with din sync out

physical specification
sturdy steel casing

dimensions:
w 215 ✕ d 176 ✕ h 63 mm
(8.5" ✕ 6.9" ✕ 2.5") (including knobs and feet)

weight: approximately 1.49 kg (3.3 lbs)

100 ✕ 100 mm vesa mounting holes. use m4 screws with a max length of 7 mm.

miscellaneous
overbridge enabled
3 year elektron warranty

included in the box
power supply psu-3b
elektron usb cable
