doepfer usb64 price : $230.00

specificaitons:
64 inputs, alternatively analog (0...+5v, e.g. generated by rotary or fader potentiometers, same as pocket electronic) or digital (e.g.generated by momentary or toggle switches/buttons, same as ctm64)
in analog mode midi control change messages are generated, resolution 7 bit (midi data range 0-127)
in digital mode note on/off or program change messages are generated
inputs via eight pin headers with 10 pins each (same pinout as pocket electronic), 10 pin ribbon cables with suitable female connectors areplugged to the pin headers, the ribbon cables are included with the usb64 (about 30 cm each), the other side of each cable is open to connect the desired controls.



usb and midi interface
power supply alternatively via usb or external power supply (e.g. during pure midi operation without usb), selectable via jumper
basic parameters (e.g. analog/digital mode, midi channel, midi note/program change/control change range 0-63 or 64-127 etc.) are selected via jumpers
update of the usb64 firmware via usb (e.g. in case of a firmware update, for this a pc with windows xp and usb interface is required), as soon as an update is available it can bedownloaded.
led display

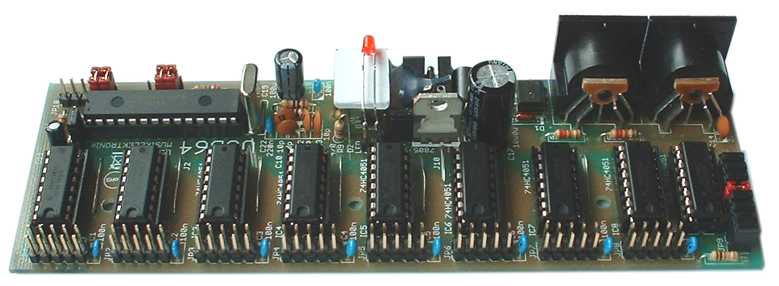

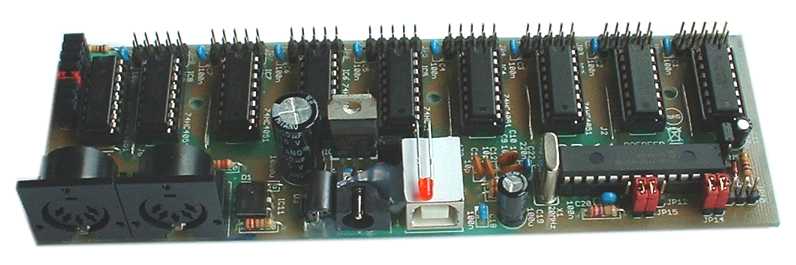

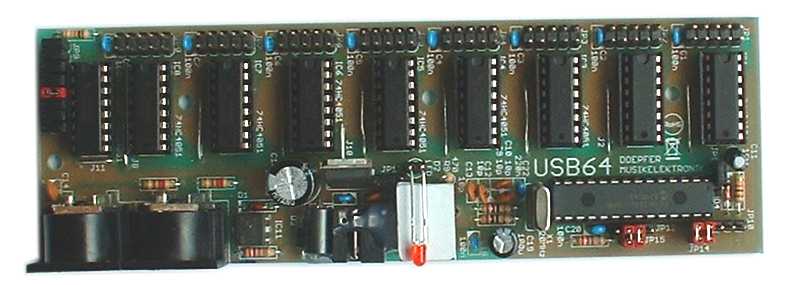

measures of the pc board: about 160 length x 55 width x 25 height (measures in mm)



scope of supply: usb64 pc board (completely assembled and testet), eight 10 pin ribbon cables with female headers (about 30 cm each), usb cable (a-b type),
for detailed information the user's manual is available as pdf file.
remark: usb64 is not suitable for rotary encoders (sometimes even called endless potentiometers). for this appliction the dial electronic has tobe used as these controls are no real potentiometers.
