doepfer

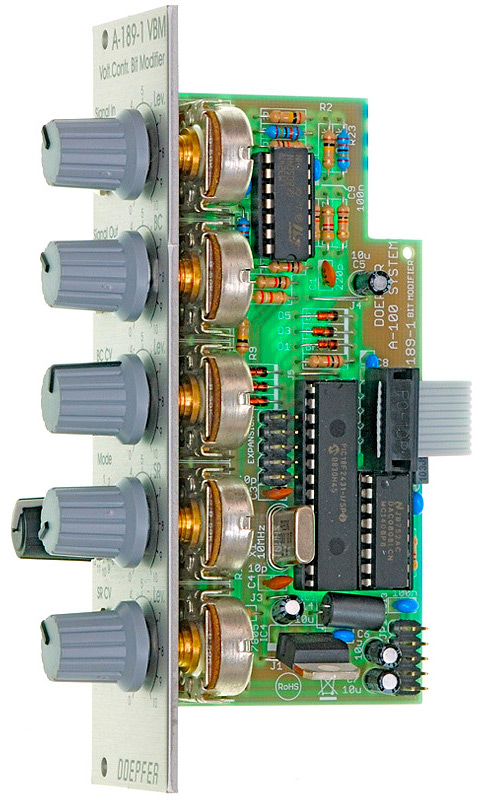

a-189-1 voltage controlled bit cruncher / modifier

price : $140.00



module a-189-1 is the first derivative of the universal ad/da module. it offers several voltage controlled algorithmic functions like voltage controlled bit crunching, bit shifting (with/without carry over), bit exchange, rectifying, absolute value and calculating operations like addition, subtraction, multiplication or division.

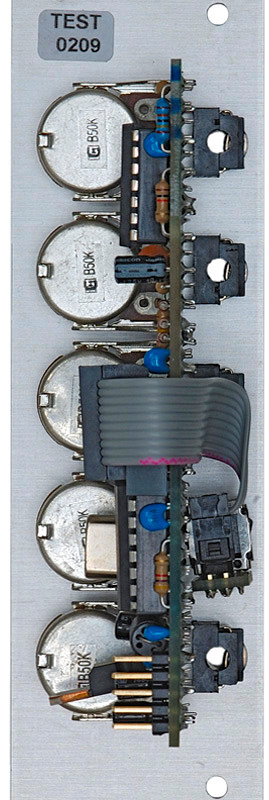

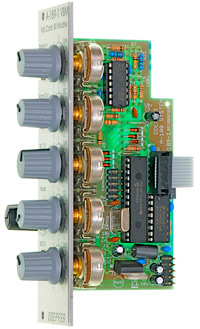

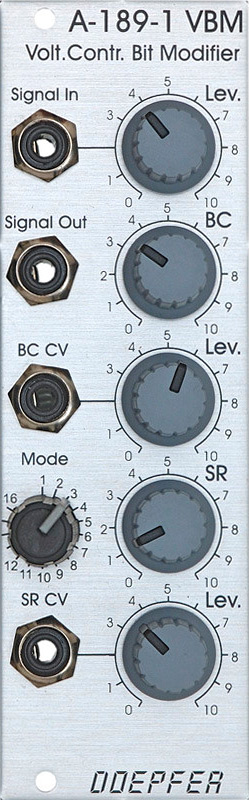

the module has two control units both with manual control and cv input with attenuator:

one for the algorithmic function according to the selected mode (e.g. number of shifted bits): bc and bc cv
and one for the sampling rate (sr and sr cv).

the signal input is equipped with an attenuator. as the module is dc coupled even control voltages can be processed.

the mode (e.g. bit crunching, bit shifting, bit exchange) is selected by a 16-position rotary switch:

switch position function remark
1 bit crushing bc controls the number of bits (bit reduction)
2 and signal and bc
3 or signal or bc
4 xor signal xor bc
5 bit shift right bc controls the number of bit shifts
6 bit shift left bc controls the number of bit shifts
7 multiplication signal x bc
8 compare & complement if signal > bc then output = bit complement of the input signal, otherwise unchanged
9 compare & absolute if signal > bc then output = absolute value of the input signal, otherwise unchanged
10 addition output = signal + bc (with overflow/clipping)
11 addition with bc swap same as 10 but with nibble swap of bc (nibble = half byte, i.e. four bits)
12 short delay 1 with dynamic normalization bc controls the length of the delay memory
13 short delay 2 same as 12 but different length/feedback
14 short delay 3 same as 12 but different length/feedback
15 short delay 4 same as 12 but different length/feedback
16 four stages fir filter bc  controls the filter coefficient

sound examples:
these are the first sound examples of the a-189-1 prototype we will show at the namm in january 2008. christian assall has programmed 16 different operating modes that are selected by the 16-position rotary switch. the simplest mode (mode #1) is the standard bit crunching function. the other modes are different bit manipulation modes. these are the very first trials and the modes of the final version of the module may be different. for all demo sounds the triangle output of a vco was used as signal input for the a-189-1. for clarity no other sound processing modules are used. the sound is generated only by an vco and the a-189-1. the vco pitch is controlled by an a-155 sequencer.



the first example shows the effect of manually changing the sampling rate in mode #1

the second example is a presentation of the 16 modes available in the prototype. one after another each of the 16 modes is selected. the sampling rate is fixed, only the manual bc control is operated from ccw to cw and back to ccw for each mode

the third example shows the effect of dynamic sample rate modulation. an adsr is triggered by one of the trigger rows of the a-155. the adsr output is connected to the sr cv input to modulate the sampling rate by the adsr envelope. the bc parameter is fixed.

in the next example the adsr output is connected to the bc cv input. this example shows the effect of dynamic bc modulation. the sample rate is fixed

in this example a vca has been added between the vco output and the signal input of the a-189-1. the adsr output is connected to the cv input of the vca. this example shows the effect of dynamic input level modulation. in addition the sample rate has been reduced a bit manually at the end of the example

the following samples arised from playing around with the a-189-1. the patch is the same as above but the adsr is used for both controlling the vca and the bc cv input of the a-189-1 (inverted output of the adsr for bc). several parameters have been changed manually during the examples (mainly envelope amount and offset controls of the vca and the a-189-1).

more demos made by our a-100 customer herman pearl/soy sos (tuffsoundrecording.com) can be found there:
http://share.ovi.com/media/soysos.public/soysos.10001
http://share.ovi.com/media/soysos.public/soysos.10003
http://share.ovi.com/media/soysos.public/soysos.10004
http://share.ovi.com/media/soysos.public/soysos.10005



this module has a maximum current draw of 50ma. it requires 8 hp/te worth of space to fit in a eurorack frame.
