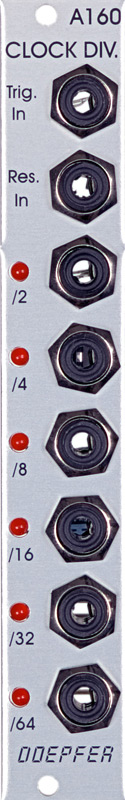

doepfer a-160 clock/trigger divider price : $80.00

module a-160 is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses. the trigger input will take clock signals from, eg., an lfo, midi sync, or the gate from a midi-cv interface.



at the outputs, you have access to the sub-divided clock signals, from half the clock frequency down to 1/64.

the a-160 also has a reset input. whenever a reset signal is sensed, all outputs are set to zero, until the reset voltage disappears.

the clock divider can be used in combination with the a-161 clock sequencer to produce stepped sequences with a length of from one to eight events.

similar modules:
a-152: voltage addressed track&hold / switch (multiplexer) / digital outputs
a-161: clock/trigger sequencer



this module has a maximum current draw of 40ma. it requires 4 te/hp worth of space to fit in a eurorack frame.

to view this module's user manual as a pdf file, please click here.
