animodule
tiktok

price : $159.99

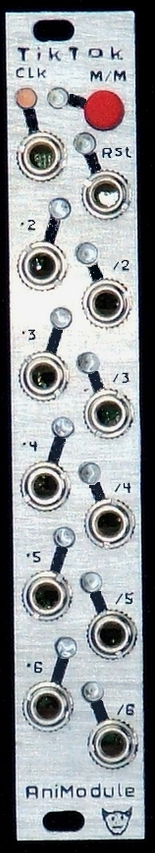

TikTok

the tiktok is a 4hp clock divider/multiplier.

it has divisions and multiplications of:
*//2
*//3
*//4
*//5
*//6

there is a clk input and a reset input. both are buffered with an opamp based comparator circuit. they are looking for approximately +1.1v on a rising edge. this means that you are not constrained to gate (pulse) signals to trigger them.

the reset input resets your divisions clock counter to 1

there is a switch to select mathematical or musical divisions.

the multiplication outputs 25ms trigger pulses. the division outputs are on as long as your clock source.

avg current draw:
40 ma
-9 ma
peak current draw:
80 ma
-17 ma

width = 4hp
depth = 38mm
