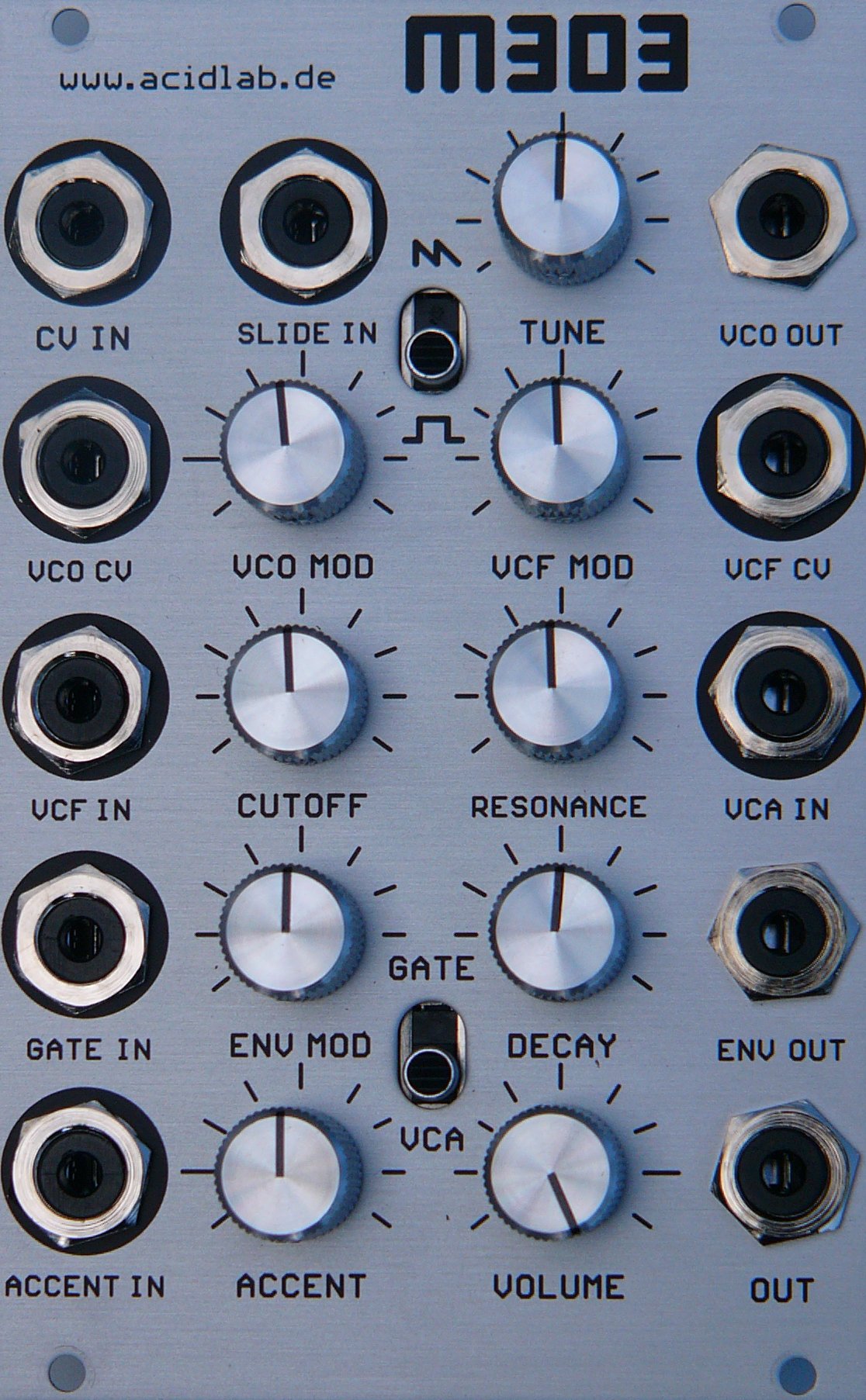

acidlab m303 (eurorack) price : $420.00

the module is a patchable synthesizer voice of the tb-303 with vco, vcf, vca and envelope generator sections. it can be controlled via cv/gate or from a sequencer such as the autobot. the analogue circuits are the same that are used in the original synth. the original transistors and closest parts are used to get as close in sound and behavior as possible. there is improved stabilization of the vco due to the use of a temperature regulated anti-log circuit.

controls:
tune
waveform
vco mod
vcf mod
cutoff
resonance
env mod
decay
gate/vca
accent
volume

inputs/outputs:
cv in
slide in
vco cv in (for tuning)
vcf in
gate in
accent in
vco out
vcf cv in
vca in
env out
audio out

width: 16 hp

power consumption:
50 ma @ +12v
20 ma@ -12v
