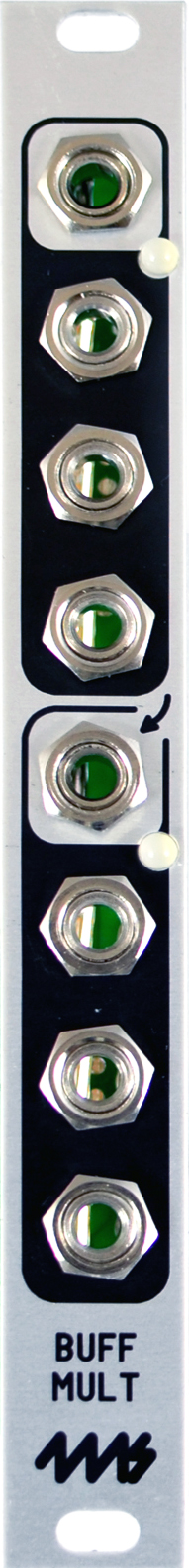

the buff mult is a buffered multiple with led indicators to show positive and negative voltages. using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or cv signals.
features:
two independent buffered multiples, normalized together
each channel has one input and three outputs that are high-grade copies of the original
each channel has a bi-color led to indicate positive (white) or negative (red) signal
video-rate opamps, for greatest bandwidth of any buffered mult. fully compatible with lzx and video signals
bottom channel is normalized to top channel, for a 1-to-6 multiple
useful for detecting signals, troubleshooting patches, isolating modules, preventing "thump" or glitches during live patching, and protecting outputs
specifications:
module size:
3 hp eurorack format module
10-pin eurorack power header
0.75" (18mm) deep
power consumption:
+12v rail: 13ma
-12v rail: 13ma
+5v rail: not used (0ma)
included with the buff mult:
10-to-16 pin power cable
m3 knurlie screws
note: the buffered mult is not a precision multiple and should not be used where exact gain and offset are required (e.g. precisely tuned 1v/oct signals)
